Imao Corporation

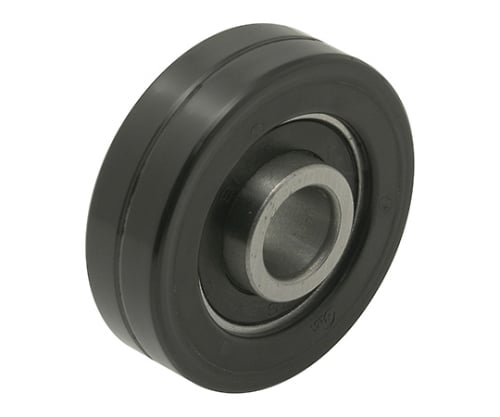

61-4235-55　［Discontinued］Urethane Roller (Both types of swallows)　CTG-BR80D

Features

Ideal for various sliding doors and conveyance rollers.
Light load specification.
Urethane is integrally molded into special shape bearings to prevent peeling. (Urethane with outer diameters of Φ20 to Φ35 is formed as a single layer, and Φ40 to Φ80 is formed as a double layer.)
Since it is made of urethane, the running noise is quiet.
Both Camellia Type
Body Material: Polyurethane
Body Hardness: Shore A95
Body Color: Black
Bearing Material: Steel (Double Rubber Seal)

rotation speed , Load tolerance ( N ) : 300 , 850/320 , 823/340 , 798/360 , 771/380 , 746/400 , 719/420 , 693/440 , 667/460 , 641/480 , 615/500 , 589

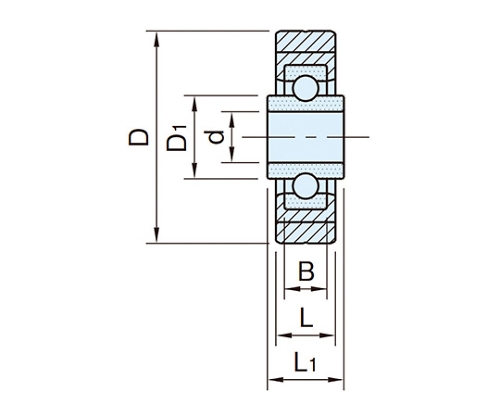

Dimensions D (mm) : 20 (+ 0.05, -0.012)
Dimensions D (mm) : 80
Dimensions D1 (mm) : 29.3
Dimensions L (mm) : 18
Dimensions L1 (mm) : 22
Dimensions B (mm) : 14
Special Bearing Product Number: 6204 -2 RS
Mass (g): 199

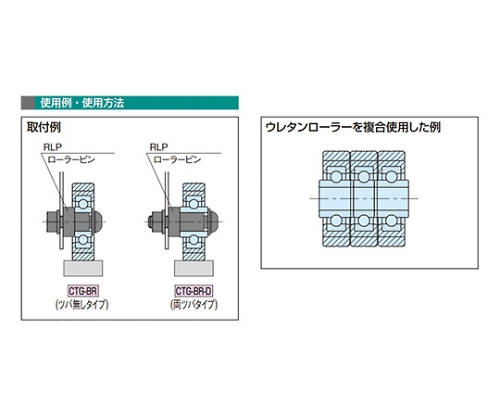

Roller pin to Apply: RLP 2018
Manufacturer's Model Number: CTG-BR 80 D

Order No.	61-4235-55
Model No.	CTG-BR80D
JAN Code	4995889667184
Standard price	JPY: 1,970 USD: 13.56 Excange rate 1USD= 145.26JPY Valid price in Japan
Quantity	1piece

Stock in Japan	-

Order No.	Name	Model No.	Quantity	Standard price	Valid price in Japan	Stock [Supplier Stock]
61-4235-28	［Discontinued］Urethane Roller (Both types of swallows)　CTG-BR65D	CTG-BR65D	1piece	JPY: 1,710	USD: 11.77	-
61-4235-30	［Discontinued］Urethane Roller (Both types of swallows)　CTG-BR70D	CTG-BR70D	1piece	JPY: 1,840	USD: 12.67	-
61-4235-53	［Discontinued］Urethane Roller (Both types of swallows)　CTG-BR75D	CTG-BR75D	1piece	JPY: 1,840	USD: 12.67	-
61-4235-55	［Discontinued］Urethane Roller (Both types of swallows)　CTG-BR80D	CTG-BR80D	1piece	JPY: 1,970	USD: 13.56	-
