• 61-4235-28 ［Discontinued］Urethane Roller (Both types of swallows)　CTG-BR65D

Imao Corporation

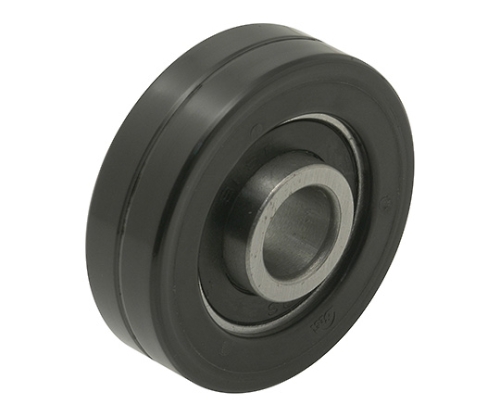

61-4235-28　［Discontinued］Urethane Roller (Both types of swallows)　CTG-BR65D

• 印刷

• PDF

他のバリエーション

•
•
•
•

•
•
•
•

特徴

• Ideal for various sliding doors and conveyance rollers.
• Light load specification.
• Urethane is integrally molded into special shape bearings to prevent peeling. (Urethane with outer diameters of Φ20 to Φ35 is formed as a single layer, and Φ40 to Φ80 is formed as a double layer.)
• Since it is made of urethane, the running noise is quiet.
• Both Camellia Type
• Body Material: Polyurethane
• Body Hardness: Shore A95
• Body Color: Black
• Bearing Material: Steel (Double Rubber Seal)

仕様

• rotation speed , Load tolerance ( N ) : 300 , 588/320 , 568/340 , 549/360 , 529/380 , 510/400 , 490/420 , 470/440 , 451/460 , 431/480 , 412/500 , 392

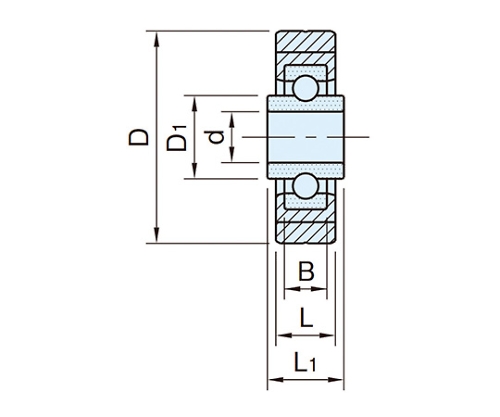

• Dimensions D (mm) : 17 (+ 0.05, -0.012)
• Dimensions D (mm) : 65
• Dimensions D1 (mm) : 24.6
• Dimensions L (mm) : 16
• Dimensions L1 (mm) : 20
• Dimensions B (mm) : 12
• Special Bearing Product Number: 6203 -2 RS
• Mass (g): 120

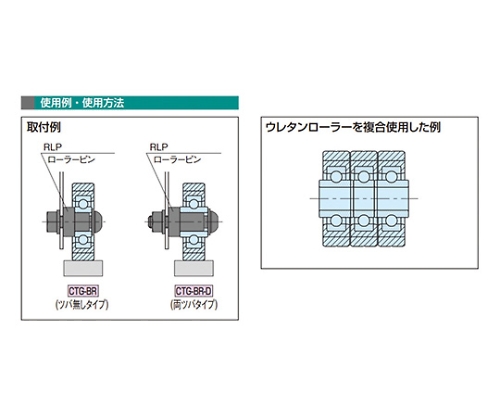

• Roller pin to Apply: RLP 1720
• Manufacturer's Model Number: CTG-BR 65 D
•

Order No.	61-4235-28
型番	CTG-BR65D
JANコード	4995889667122
標準価格	JPY: 1,710 USD: 10.72 Excange rate 1USD= 159.53JPY Valid price in Japan
入り数	1piece
在庫数	-

お見積もり

その他のお問い合わせ

商品のバリエーション （サイズ違い・スペック違い・オプション品など）

商品イメージ	アズワン品番	商品名	型番		入り数	標準価格	標準価格(ドル)	アズワン在庫 [サプライヤ在庫]
	61-4235-28	［Discontinued］Urethane Roller (Both types of swallows)　CTG-BR65D	CTG-BR65D		1piece	JPY: 1,710	USD: 10.72	-
	61-4235-30	［Discontinued］Urethane Roller (Both types of swallows)　CTG-BR70D	CTG-BR70D		1piece	JPY: 1,840	USD: 11.53	-
	61-4235-53	［Discontinued］Urethane Roller (Both types of swallows)　CTG-BR75D	CTG-BR75D		1piece	JPY: 1,840	USD: 11.53	-
	61-4235-55	［Discontinued］Urethane Roller (Both types of swallows)　CTG-BR80D	CTG-BR80D		1piece	JPY: 1,970	USD: 12.35	-
