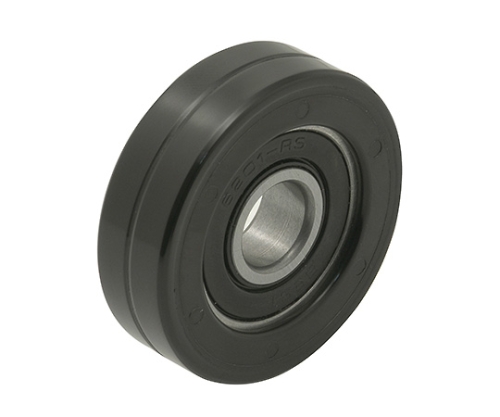

61-4235-29 ［Discontinued］Urethane Roller (No Flange Type) CTG-BR70
Features
- Ideal for various sliding doors and conveyance rollers.
- Light load specification.
- Urethane is integrally molded into special shape bearings to prevent peeling. (Urethane with outer diameters of Φ20 to Φ35 is formed as a single layer, and Φ40 to Φ80 is formed as a double layer.)
- Since it is made of urethane, the running noise is quiet.
- Type without brim
- Body Material: Polyurethane
- Body Hardness: Shore A95
- Body Color: Black
- Bearing Material: Steel (Double Rubber Seal)
Spec
- rotation speed , Load tolerance ( N ) : 300 , 637/320 , 617/340 , 598/360 , 578/380 , 559/400 , 539/420 , 519/440 , 500/460 , 480/480 , 461/500 , 441

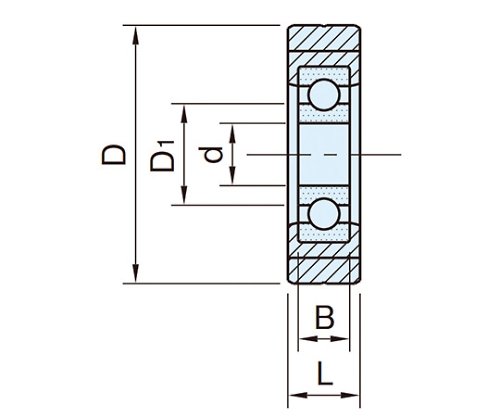

- Dimensions D (mm) : 17 (+ 0, -0.008)
- Dimensions D (mm) : 70
- Dimensions D1 (mm) : 23
- Dimensions L (mm) : 16
- Dimensions B (mm) : 12
- Bearing Part Number: 6203 -2 RS
- Mass (g): 113

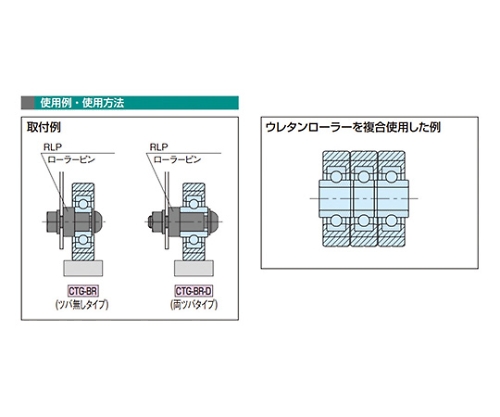

- Roller pin to Apply: RLP 1712
- Manufacturer's Model Number: CTG-BR 70
| Order No. | 61-4235-29 | |
|---|---|---|
| Model No. | CTG-BR70 | |
| JAN Code | 4995889667139 | |
| Standard price |
JPY: 1,400
USD: 9.65
Excange rate 1USD= 145.14JPY
Valid price in Japan |
|
| Quantity | 1piece | |
|
||
| Stock in Japan | - | |
Product Variations (Different Sizes, Specifications, Optional Products, etc.)
| Product image | Order No. | Name | Model No. | Quantity | Standard price | Valid price in Japan | Stock [Supplier Stock] |
|
|---|---|---|---|---|---|---|---|---|
 |
61-4235-27 | ［Discontinued］Urethane Roller (No Flange Type) CTG-BR65 | CTG-BR65 | 1piece | JPY: 1,270 | USD: 8.75 |
-
|
|
 |
61-4235-29 | ［Discontinued］Urethane Roller (No Flange Type) CTG-BR70 | CTG-BR70 | 1piece | JPY: 1,400 | USD: 9.65 |
-
|
|
 |
61-4235-31 | ［Discontinued］Urethane Roller (No Flange Type) CTG-BR75 | CTG-BR75 | 1piece | JPY: 1,520 | USD: 10.47 |
-
|
|
 |
61-4235-54 | ［Discontinued］Urethane Roller (No Flange Type) CTG-BR80 | CTG-BR80 | 1piece | JPY: 1,650 | USD: 11.37 |
-
|
