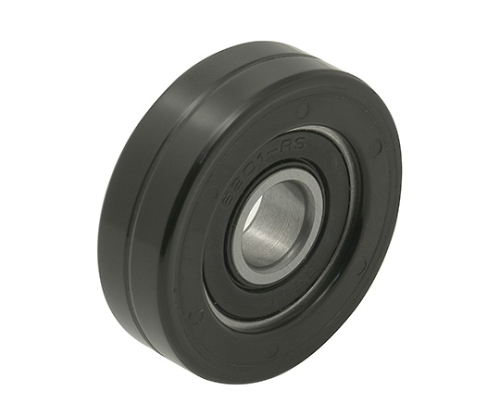

61-4235-54 ［Discontinued］Urethane Roller (No Flange Type) CTG-BR80
Features
- Ideal for various sliding doors and conveyance rollers.
- Light load specification.
- Urethane is integrally molded into special shape bearings to prevent peeling. (Urethane with outer diameters of Φ20 to Φ35 is formed as a single layer, and Φ40 to Φ80 is formed as a double layer.)
- Since it is made of urethane, the running noise is quiet.
- Type without brim
- Body Material: Polyurethane
- Body Hardness: Shore A95
- Body Color: Black
- Bearing Material: Steel (Double Rubber Seal)
Spec
- rotation speed , Load tolerance ( N ) : 300 , 850/320 , 823/340 , 798/360 , 771/380 , 746/400 , 719/420 , 693/440 , 667/460 , 641/480 , 615/500 , 589

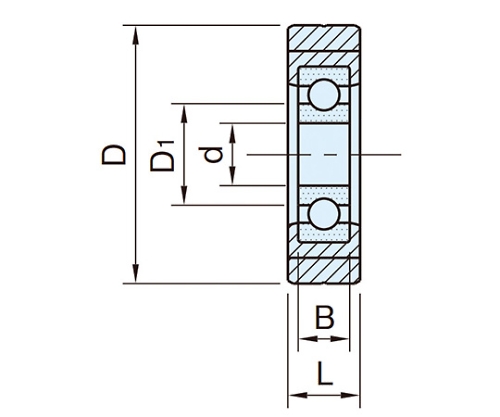

- Dimensions D (mm) : 20 (+ 0, -0.01)
- Dimensions D (mm) : 80
- Dimensions D1 (mm) : 27.6
- Dimensions L (mm) : 18
- Dimensions B (mm) : 14
- Bearing Part Number: 6204 -2 RS
- Mass (g): 176
- Roller pin to Apply: RLP 2014
- Manufacturer's Model Number: CTG-BR 80
| Order No. | 61-4235-54 | |
|---|---|---|
| Model No. | CTG-BR80 | |
| JAN Code | 4995889667177 | |
| Standard price |
JPY: 1,650
USD: 11.36
Excange rate 1USD= 145.26JPY
Valid price in Japan |
|
| Quantity | 1piece | |
|
||
| Stock in Japan | - | |
Product Variations (Different Sizes, Specifications, Optional Products, etc.)
| Product image | Order No. | Name | Model No. | Quantity | Standard price | Valid price in Japan | Stock [Supplier Stock] |
|
|---|---|---|---|---|---|---|---|---|
 |
61-4235-27 | ［Discontinued］Urethane Roller (No Flange Type) CTG-BR65 | CTG-BR65 | 1piece | JPY: 1,270 | USD: 8.74 |
-
|
|
 |
61-4235-29 | ［Discontinued］Urethane Roller (No Flange Type) CTG-BR70 | CTG-BR70 | 1piece | JPY: 1,400 | USD: 9.64 |
-
|
|
 |
61-4235-31 | ［Discontinued］Urethane Roller (No Flange Type) CTG-BR75 | CTG-BR75 | 1piece | JPY: 1,520 | USD: 10.46 |
-
|
|
 |
61-4235-54 | ［Discontinued］Urethane Roller (No Flange Type) CTG-BR80 | CTG-BR80 | 1piece | JPY: 1,650 | USD: 11.36 |
-
|
