NIPPON BEARING

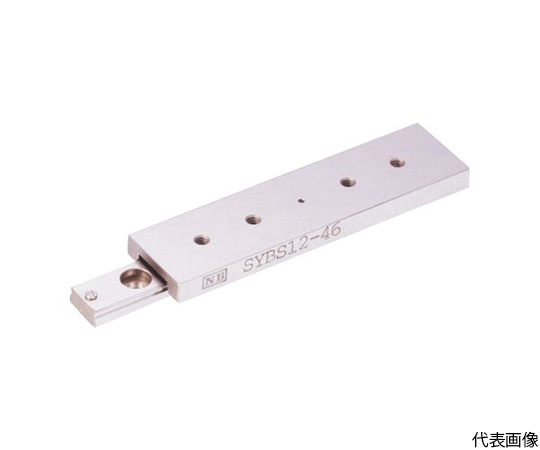

64-8708-57　Slide Guide　SYBS17-23

  • Flat Rate Shipping

Features

  • The SYBS type is the most compact finite stroke slide with two rows of track grooves.
  • Although it is a direct bearing using a ball for rolling elements, it achieves an ultra-compact design, contributing to the miniaturization and weight reduction of all industrial machinery and equipment.

Spec

  • H (mm): 8
  • W (mm): 5
  • H1 (mm): 1.5
  • Effective stroke (mm): 14
  • B (mm): 17
  • L (mm): 23
  • P1 (mm): 10.0
  • P2 (mm): -
  • B1 (mm): 12
  • S1: M2
  • S1 max. screwed depth (mm): 3
  • H2 (mm): 4.7
  • d x G x h (mm): 2.4 x 4.2 x 2.3
  • S2: -
  • P3 (mm): 15
  • n (mm): -
  • P4 (mm): -
  • C (mm): 7
  • Total Length (mm): 23
  • Width (mm): 17
  • Height (mm): 8
  • Basic load rating motion (N): 776
  • Base Load Rating Static (N): 888
  • Allowable Load (N): 296
  • Miniature Slide SYBS Type
  • Material/Finish: Stainless Steel
  • Country of origin: Japan
  • Securities Code: 157 -3281
  •

*This product might require extra fees.

Order No. 64-8708-57
Model No. SYBS17-23
Standard price JPY: 10,000 USD: 62.22
Excange rate 1USD= 160.72JPY
Valid price in Japan
Quantity 1piece
Stock in Japan
Supplier Stock

Product Variations (Different Sizes, Specifications, Optional Products, etc.)

Product image Order No. Name Model No. Quantity Standard price Valid price in Japan Stock
[Supplier Stock]
64-8708-45 Slide Guide　SYBS12-23 SYBS12-23
1piece JPY: 8,500 USD: 52.89

64-8708-55 Slide Guide　SYBS12-31 SYBS12-31
1piece JPY: 9,100 USD: 56.62

64-8708-56 Slide Guide　SYBS12-46 SYBS12-46
1piece JPY: 10,000 USD: 62.22

64-8708-57 Slide Guide　SYBS17-23 SYBS17-23
1piece JPY: 10,000 USD: 62.22

64-8708-58 Slide Guide　SYBS17-31 SYBS17-31
1piece JPY: 10,859 USD: 67.57

64-8708-59 Slide Guide　SYBS17-46 SYBS17-46
1piece JPY: 12,259 USD: 76.28

64-8708-60 Slide Guide　SYBS6-13 SYBS6-13
1piece JPY: 9,000 USD: 56.00

64-8708-61 Slide Guide　SYBS6-21 SYBS6-21
1piece JPY: 9,800 USD: 60.98

64-8708-62 Slide Guide　SYBS8-11 SYBS8-11
1piece JPY: 7,800 USD: 48.53

64-8708-63 Slide Guide　SYBS8-21 SYBS8-21
1piece JPY: 8,400 USD: 52.27

64-8708-64 Slide Guide　SYBS8-31 SYBS8-31
1piece JPY: 9,100 USD: 56.62
