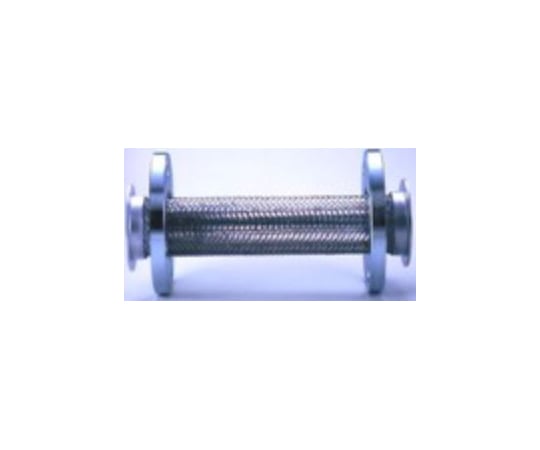

64-4031-36 Flexible Joint 10 KFF Bellows Type (L Dimension: 300 mm) YBF-2E-300MM-32A
Features
- Ideal for general piping (core slip absorption, etc.)
- Extremely good flexibility against bending
- Excellent corrosion resistance durability due to use of stainless steel at the weld
Spec
- Specifications: For General Piping (For core displacement absorption)
- Type: flexible joints
- Format: Bellows
- Nominal Diameter: Listed after the model number
- Applicable Fluid: steam, Air, Hot/Cold Water, Oil
- Maximum pressure: 1.0 MPa (250 A for 0.5 MPa)
- Maximum temperature: 220 deg.
- Connection Method: JIS 10 KFF (double-sided loose flange)
- Flange: SS 400
- Blade Tube: SUS
- Length: 300 mm
| Order No. | 64-4031-36 | |
|---|---|---|
| Model No. | YBF-2E-300MM-32A | |
| Standard price |
JPY: 30,800
USD: 191.64
Excange rate 1USD= 160.72JPY
Valid price in Japan |
|
| Quantity | 1piece | |
| Stock in Japan |
|
|
| Supplier Stock |
|
|
Product Variations (Different Sizes, Specifications, Optional Products, etc.)
| Product image | Order No. | Name | Model No. | Quantity | Standard price | Valid price in Japan | Stock [Supplier Stock] |
|
|---|---|---|---|---|---|---|---|---|
 |
64-4031-33 | Flexible Joint 10 KFF Bellows Type (L Dimension: 300 mm) YBF-2E-300MM-15A | YBF-2E-300MM-15A | 1piece | JPY: 17,000 | USD: 105.77 |
|
|
 |
64-4031-34 | Flexible Joint 10 KFF Bellows Type (L Dimension: 300 mm) YBF-2E-300MM-20A | YBF-2E-300MM-20A | 1piece | JPY: 20,800 | USD: 129.42 |
|
|
 |
64-4031-35 | Flexible Joint 10 KFF Bellows Type (L Dimension: 300 mm) YBF-2E-300MM-25A | YBF-2E-300MM-25A | 1piece | JPY: 25,000 | USD: 155.55 |
|
|
 |
64-4031-36 | Flexible Joint 10 KFF Bellows Type (L Dimension: 300 mm) YBF-2E-300MM-32A | YBF-2E-300MM-32A | 1piece | JPY: 30,800 | USD: 191.64 |
|
|
 |
64-4031-37 | Flexible Joint 10 KFF Bellows Type (L Dimension: 300 mm) YBF-2E-300MM-40A | YBF-2E-300MM-40A | 1piece | JPY: 37,900 | USD: 235.81 |
|
|
 |
64-4031-38 | Flexible Joint 10 KFF Bellows Type (L Dimension: 300 mm) YBF-2E-300MM-50A | YBF-2E-300MM-50A | 1piece | JPY: 45,800 | USD: 284.97 |
|
|
 |
64-4031-39 | Flexible Joint 10 KFF Bellows Type (L Dimension: 300 mm) YBF-2E-300MM-65A | YBF-2E-300MM-65A | 1piece | JPY: 60,000 | USD: 373.32 |
|
|
 |
64-4031-40 | Flexible Joint 10 KFF Bellows Type (L Dimension: 300 mm) YBF-2E-300MM-80A | YBF-2E-300MM-80A | 1piece | JPY: 73,700 | USD: 458.56 |
|
|
 |
64-4031-41 | Flexible Joint 10 KFF Bellows Type (L Dimension: 300 mm) YBF-2E-300MM-100A | YBF-2E-300MM-100A | 1piece | JPY: 108,000 | USD: 671.98 |
|
