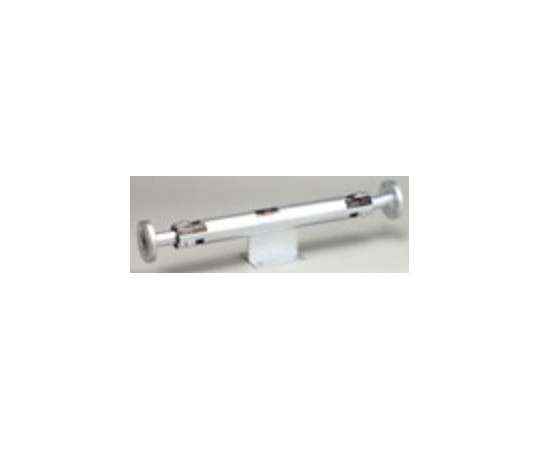

64-4031-18 Duplex Expansion Joint (JIS Compliant Product 0.98 MPa) EB-2J-150A
Features
- Absorbs axial expansion and contraction of pipeline due to temperature change
- Complies with Japanese Industrial Standard JIS B 2352
- Excellent corrosion resistance due to welded part stainless steel
- Has anchor base and low installation cost
Spec
- Specifications: JIS B 2352 Compliant Product/Wetted Part Stainless Steel
- Type: expansion fittings
- Format: Bellows (Compound A)
- Nominal Diameter: Listed after the model number
- Applicable fluids: steam, Air, Cold/Hot Water, Oil, Other Non-Dangerous Fluid
- Maximum pressure: 1.0 MPa
- Maximum temperature: 220 deg.
- Connection Method: JIS 10 KFF
- Max. stretch length: elongation 20 mm, contraction/50 mm
- Outer shell: SPHC or SS
- Bellows/Inner Tube: SUS316L
| Order No. | 64-4031-18 | |
|---|---|---|
| Model No. | EB-2J-150A | |
| Standard price |
JPY: 513,000
USD: 3,191.89
Excange rate 1USD= 160.72JPY
Valid price in Japan |
|
| Quantity | 1piece | |
| Stock in Japan |
|
|
| Supplier Stock |
|
|
Product Variations (Different Sizes, Specifications, Optional Products, etc.)
| Product image | Order No. | Name | Model No. | Quantity | Standard price | Valid price in Japan | Stock [Supplier Stock] |
|
|---|---|---|---|---|---|---|---|---|
 |
64-4031-17 | Duplex Expansion Joint (JIS Compliant Product 0.98 MPa) EB-2J-125A | EB-2J-125A | 1piece | JPY: 366,000 | USD: 2,277.25 |
|
|
 |
64-4031-18 | Duplex Expansion Joint (JIS Compliant Product 0.98 MPa) EB-2J-150A | EB-2J-150A | 1piece | JPY: 513,000 | USD: 3,191.89 |
|
|
 |
64-4031-19 | Duplex Expansion Joint (JIS Compliant Product 0.98 MPa) EB-2J-200A | EB-2J-200A | 1piece | JPY: 697,000 | USD: 4,336.74 |
|
|
 |
64-4031-20 | Duplex Expansion Joint (JIS Compliant Product 0.98 MPa) EB-2J-250A | EB-2J-250A | 1piece | JPY: 816,000 | USD: 5,077.15 |
|
