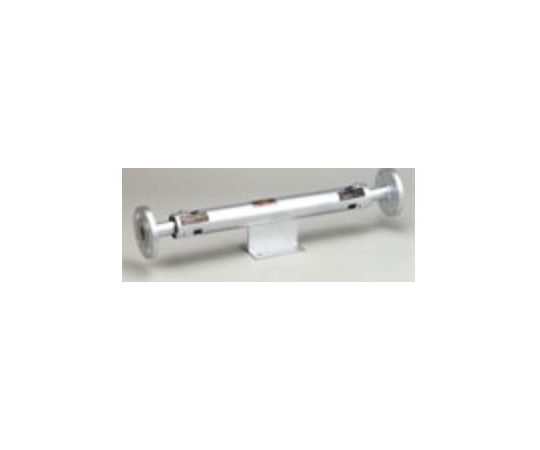

64-4031-10 Duplex Expansion Joint (High Pressure 2.0 MPa) EB-12-150A
Features
- Absorbs axial expansion and contraction of pipeline due to temperature change. Excellent corrosion resistance and durability due to the welded part stainless steel. Installation with anchor base is inexpensive.
Spec
- Specifications: High Pressure, Wetted Part Stainless Steel
- Type: expansion fittings
- Format: Bellows (multiple system)
- Nominal Diameter: Listed after the model number
- Applicable fluids: steam, Air, Cold/Hot Water, Oil, Other Non-Dangerous Fluid
- Maximum pressure: 2.0 MPa
- Maximum temperature: 220 deg.
- Connection Method: JIS 20 KRF
- Maximum Length: Stretch/20 mm, Shorten/50 mm
- Outer shell: SPHC or SS
- Bellows/Inner Tube: SUS316L
| Order No. | 64-4031-10 | |
|---|---|---|
| Model No. | EB-12-150A | |
| Standard price |
JPY: 906,000
USD: 5,637.13
Excange rate 1USD= 160.72JPY
Valid price in Japan |
|
| Quantity | 1piece | |
| Stock in Japan |
|
|
| Supplier Stock |
|
|
Product Variations (Different Sizes, Specifications, Optional Products, etc.)
| Product image | Order No. | Name | Model No. | Quantity | Standard price | Valid price in Japan | Stock [Supplier Stock] |
|
|---|---|---|---|---|---|---|---|---|
 |
64-4031-09 | Duplex Expansion Joint (High Pressure 2.0 MPa) EB-12-125A | EB-12-125A | 1piece | JPY: 763,000 | USD: 4,747.39 |
|
|
 |
64-4031-10 | Duplex Expansion Joint (High Pressure 2.0 MPa) EB-12-150A | EB-12-150A | 1piece | JPY: 906,000 | USD: 5,637.13 |
|
|
 |
64-4031-11 | Duplex Expansion Joint (High Pressure 2.0 MPa) EB-12-200A | EB-12-200A | 1piece | JPY: 1,060,000 | USD: 6,595.32 |
|
|
 |
64-4031-12 | Duplex Expansion Joint (High Pressure 2.0 MPa) EB-12-250A | EB-12-250A | 1piece | JPY: 1,920,000 | USD: 11,946.24 |
|
