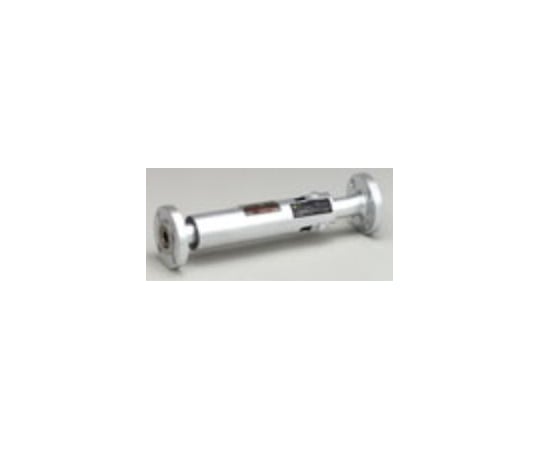

64-4031-08 Single type expansion Joint(High Pressure 2.0 MPa) EB-11-250A
Features
- Absorbs axial expansion and contraction of pipeline due to temperature change
- Easy maintenance and management since packing is not used
- Excellent corrosion resistance and durability due to welding part stainless steel
Spec
- Specifications: High Pressure, Wetted Part Stainless Steel
- Type: expansion fittings
- Format: Bellows (single expression)
- Nominal Diameter: Listed after the model number
- Applicable fluids: steam, Air, Cold/Hot Water, Oil, Other Non-Dangerous Fluid
- Maximum pressure: 2.0 MPa
- Maximum temperature: 220 deg.
- Connection Method: JIS 20 KRF
- Maximum Length: Stretch/10 mm, Shorten/25 mm
- Outer shell: SPHC or SS
- Bellows/Inner Tube: SUS316L
| Order No. | 64-4031-08 | |
|---|---|---|
| Model No. | EB-11-250A | |
| Standard price |
JPY: 906,000
USD: 5,679.18
Excange rate 1USD= 159.53JPY
Valid price in Japan |
|
| Quantity | 1piece | |
| Stock in Japan |
|
|
| Supplier Stock |
|
|
Product Variations (Different Sizes, Specifications, Optional Products, etc.)
| Product image | Order No. | Name | Model No. | Quantity | Standard price | Valid price in Japan | Stock [Supplier Stock] |
|
|---|---|---|---|---|---|---|---|---|
 |
64-4031-05 | Single type expansion Joint(High Pressure 2.0 MPa) EB-11-125A | EB-11-125A | 1piece | JPY: 387,000 | USD: 2,425.88 |
|
|
 |
64-4031-06 | Single type expansion Joint(High Pressure 2.0 MPa) EB-11-150A | EB-11-150A | 1piece | JPY: 465,000 | USD: 2,914.81 |
|
|
 |
64-4031-07 | Single type expansion Joint(High Pressure 2.0 MPa) EB-11-200A | EB-11-200A | 1piece | JPY: 676,000 | USD: 4,237.45 |
|
|
 |
64-4031-08 | Single type expansion Joint(High Pressure 2.0 MPa) EB-11-250A | EB-11-250A | 1piece | JPY: 906,000 | USD: 5,679.18 |
|
