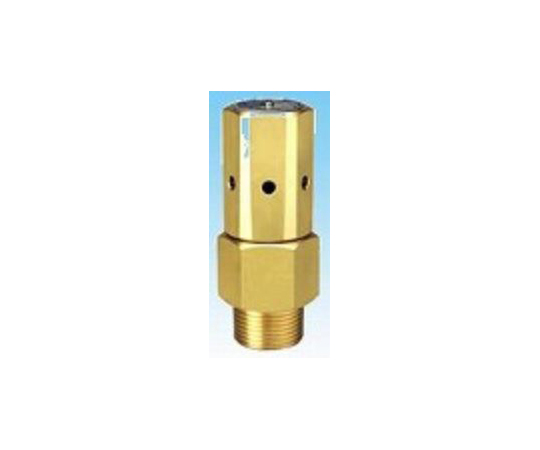

64-4030-93 Brass Vacuum Relief Valve (steam Air 1.0 MPa) VB-7-20A
Features
- Adjust the vacuum level to prevent accidents caused by negative pressure and protect equipment and piping. • Stable operation without chattering hunting phenomenon. • Compact and lightweight.
Spec
- Specifications: Brass
- Type: Vacuum Relief Valve
- Type: Vacuum Relief Valve
- Nominal Diameter: Listed after the model number
- Applicable Fluid: steam, Air
- Adjustment Pressure Range: (A) -0.5 to -21 kPa (B) -21 to -48 kPa (C) -48 to -81 kPa * Please specify one of the settings when ordering.
- Maximum temperature: 220 deg.
- Connection Method: JIS R
- Body: C 3604
- valve body: CAC
- Valve seat: C 3604
| Order No. | 64-4030-93 | |
|---|---|---|
| Model No. | VB-7-20A | |
| Standard price |
JPY: 64,000
USD: 401.18
Excange rate 1USD= 159.53JPY
Valid price in Japan |
|
| Quantity | 1piece | |
| Stock in Japan |
|
|
| Supplier Stock |
|
|
Product Variations (Different Sizes, Specifications, Optional Products, etc.)
| Product image | Order No. | Name | Model No. | Quantity | Standard price | Valid price in Japan | Stock [Supplier Stock] |
|
|---|---|---|---|---|---|---|---|---|
 |
64-4030-92 | Brass Vacuum Relief Valve (steam Air 1.0 MPa) VB-7-15A | VB-7-15A | 1piece | JPY: 60,000 | USD: 376.11 |
|
|
 |
64-4030-93 | Brass Vacuum Relief Valve (steam Air 1.0 MPa) VB-7-20A | VB-7-20A | 1piece | JPY: 64,000 | USD: 401.18 |
|
|
 |
64-4030-94 | Brass Vacuum Relief Valve (steam Air 1.0 MPa) VB-7-25A | VB-7-25A | 1piece | JPY: 64,900 | USD: 406.82 |
|
|
 |
64-4030-95 | Brass Vacuum Relief Valve (steam Air 1.0 MPa) VB-7-32A | VB-7-32A | 1piece | JPY: 98,100 | USD: 614.93 |
|
|
 |
64-4030-96 | Brass Vacuum Relief Valve (steam Air 1.0 MPa) VB-7-40A | VB-7-40A | 1piece | JPY: 99,700 | USD: 624.96 |
|
|
 |
64-4030-97 | Brass Vacuum Relief Valve (steam Air 1.0 MPa) VB-7-50A | VB-7-50A | 1piece | JPY: 114,000 | USD: 714.60 |
|
