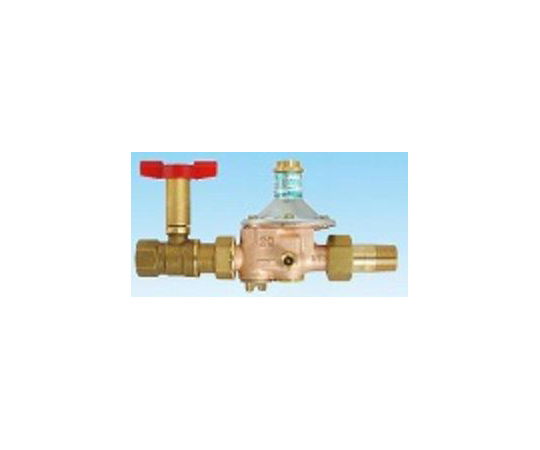

64-4030-87 Pressure reducing valve for water supply to multiple dwelling houses (conforming products, Standard for Threaded Water Supply Law) GD-46SP-20A
Features
- Products Complying with the Water Supply Law
- Complies with the quality criteria of the Urban Development Corporation
- Lead elution performance is 0.01 mg or less
Spec
- Specifications: With Bypass, Leadless Treatment, With Stopcock
- Type: pressure reducing valve for individual water supply to multiple dwelling houses with bypass
- Nominal Diameter: Listed after the model number
- Applicable fluids: tap water, Hot Water
- Primary Pressure: 1.0 MPa or Less
- Secondary Pressure: (A) 0.05 to 0.1 MPa (B) 0.1 to 0.22 MPa (C) 0.2 to 0.3 MPa
- Connection Method: Inlet/JIS Rc, Outlet/JIS R (union joint)
- Minimum Adjustable flow rate: 0.5 L/min
- Minimum pre-valve differential pressure: 0.02 MPa
- Maximum decompression ratio: 10: 1
- Maximum temperature: 90 deg.
- Body: CAC
- Valve body: Synthetic rubber
- seat: CAC
- Diaphragm: Synthetic Rubber
- Heat insulating material: Flame-retardant material
| Order No. | 64-4030-87 | |
|---|---|---|
| Model No. | GD-46SP-20A | |
| Standard price |
JPY: 31,300
USD: 196.20
Excange rate 1USD= 159.53JPY
Valid price in Japan |
|
| Quantity | 1piece | |
| Stock in Japan |
|
|
| Supplier Stock |
|
|
Product Variations (Different Sizes, Specifications, Optional Products, etc.)
| Product image | Order No. | Name | Model No. | Quantity | Standard price | Valid price in Japan | Stock [Supplier Stock] |
|
|---|---|---|---|---|---|---|---|---|
 |
64-4030-84 | Pressure reducing valve for water supply to multiple dwelling houses (conforming products, Standard for Threaded Water Supply Law) GD-46KK-20A | GD-46KK-20A | 1piece | JPY: 28,900 | USD: 181.16 |
|
|
 |
64-4030-85 | Pressure reducing valve for water supply to multiple dwelling houses (conforming products, Standard for Threaded Water Supply Law) GD-46LL-20A | GD-46LL-20A | 1piece | JPY: 29,900 | USD: 187.43 |
|
|
 |
64-4030-86 | Pressure reducing valve for water supply to multiple dwelling houses (conforming products, Standard for Threaded Water Supply Law) GD-46PP-20A | GD-46PP-20A | 1piece | JPY: 28,100 | USD: 176.14 |
|
|
 |
64-4030-87 | Pressure reducing valve for water supply to multiple dwelling houses (conforming products, Standard for Threaded Water Supply Law) GD-46SP-20A | GD-46SP-20A | 1piece | JPY: 31,300 | USD: 196.20 |
|
