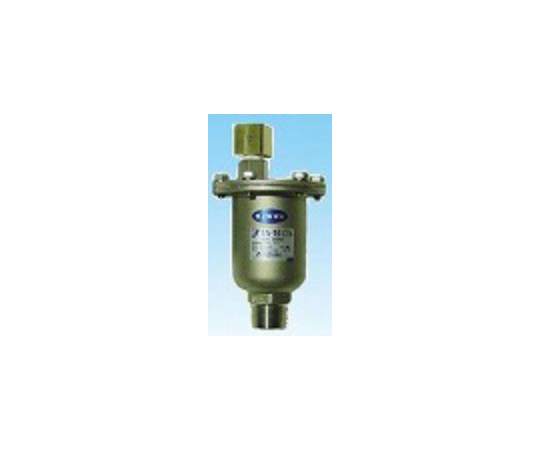

64-4030-65 SUS Air vent valve (Angle Type with Check Valve, Water Supply Law Standard conforming products) TA-16CVA-20A
Features
- Water Act compliant product
- Excellent corrosion resistance and durability thanks to the use of stainless steel
- Stable displacement over wide operating pressure
- Compact and can be installed in a small space
- With check valve, does not draw air even when the inlet side is under negative pressure
- Optional pipe connection parts can be installed
Spec
- Specifications: SUS Made/With Check Valve
- Type : Air vent valve
- Format: Float
- Nominal Diameter: Listed after the model number
- Applicable fluids: Cold or hot water
- Applicable Pressure Range: 0.01 to 1.0 MPa or Less
- Maximum temperature: 90 deg.
- Connection Method: JIS R
- Body: SUS
- Float: SUS
- Disk: FKM (Viton)
| Order No. | 64-4030-65 | |
|---|---|---|
| Model No. | TA-16CVA-20A | |
| Standard price |
JPY: 26,000
USD: 162.98
Excange rate 1USD= 159.53JPY
Valid price in Japan |
|
| Quantity | 1piece | |
| Stock in Japan |
|
|
| Supplier Stock |
|
|
Product Variations (Different Sizes, Specifications, Optional Products, etc.)
| Product image | Order No. | Name | Model No. | Quantity | Standard price | Valid price in Japan | Stock [Supplier Stock] |
|
|---|---|---|---|---|---|---|---|---|
 |
64-4030-64 | SUS Air vent valve (Angle Type with Check Valve, Water Supply Law Standard conforming products) TA-16CVA-15A | TA-16CVA-15A | 1piece | JPY: 26,000 | USD: 162.98 |
|
|
 |
64-4030-65 | SUS Air vent valve (Angle Type with Check Valve, Water Supply Law Standard conforming products) TA-16CVA-20A | TA-16CVA-20A | 1piece | JPY: 26,000 | USD: 162.98 |
|
|
 |
64-4030-66 | SUS Air vent valve (Angle Type with Check Valve, Water Supply Law Standard conforming products) TA-16CVA-25A | TA-16CVA-25A | 1piece | JPY: 26,400 | USD: 165.49 |
|
