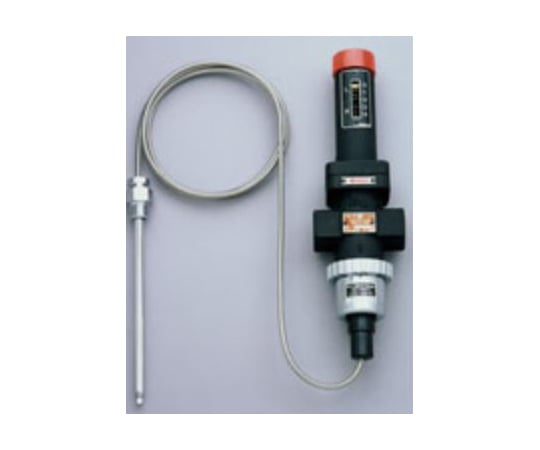

64-4030-19 CAC Regulating valve (For Threading, Heating, External Pressure Type) OB-30-25A
特徴
- Compact Body, High-Performance Temperature Regulator Valve
- Can Be Delicately Regulated at Low Flow Rate and Small Volume
- Can be used for a wide range of applications with a large temperature range
仕様
- Specifications: Small capacity, For Heating
- Type: Temperature Control Valve
- Type: External pressure bellows type
- Nominal Diameter: Listed after the model number
- Applicable fluids: steam, Hot Water
- Maximum pressure: 1.7 MPa (steam 1.0 MPa.)
- Maximum temperature: 185 deg.
- Connection Method: JIS Rc
- Lead tube length: 2m
- Body: CAC
- Valve Body: PTFE (Fluorine Plastic)
- Thermal Cylinder: C 1220 (Copper Tube NiCr Plating)
| アズワン品番 | 64-4030-19 | |
|---|---|---|
| 型番 | OB-30-25A | |
| 標準価格 |
JPY: 178,000
USD: 1,116.55
Excange rate 1USD= 159.42JPY
Valid price in Japan |
|
| 入り数 | 1piece | |
| Stock in Japan |
|
|
| サプライヤ在庫 |
|
|
Product Variations (Different Sizes, Specifications, Optional Products, etc.)
| Product image | Order No. | Name | Model No. | Quantity | Standard price | Valid price in Japan | Stock [Supplier Stock] |
|
|---|---|---|---|---|---|---|---|---|
 |
64-4030-17 | CAC Regulating valve (For Threading, Heating, External Pressure Type) OB-30-15A | OB-30-15A | 1piece | JPY: 176,000 | USD: 1,104.00 |
|
|
 |
64-4030-18 | CAC Regulating valve (For Threading, Heating, External Pressure Type) OB-30-20A | OB-30-20A | 1piece | JPY: 177,000 | USD: 1,110.28 |
|
|
 |
64-4030-19 | CAC Regulating valve (For Threading, Heating, External Pressure Type) OB-30-25A | OB-30-25A | 1piece | JPY: 178,000 | USD: 1,116.55 |
|
