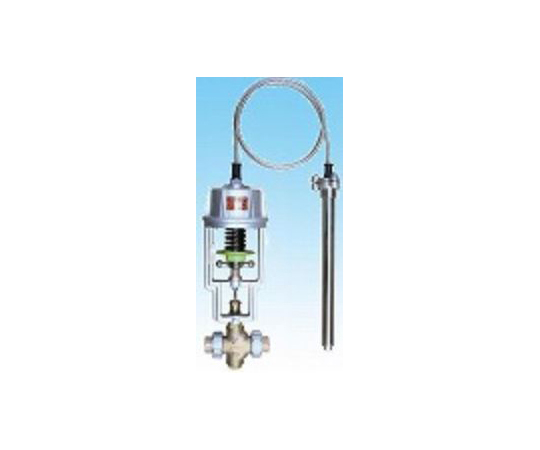

64-4029-71 CAC Regulating valve (Threaded, Double Valve, Low Temperature Heating, External Pressure Type, Thermal Cylinder SUS) OB-1G-20A
Features
- Used for adjusting heating temperature
- Easy piping with union type connection screw
- No tool required as it comes with adjustment handle
- Large passage flow rate compared to single valve with double valve structure
- Excellent temperature resistance due to external pressure bellows
Spec
- Specifications: Multiple Valves (For Heating/Low Temperature Heating)
- Type: Temperature Control Valve
- Type: External pressure bellows type
- Nominal Diameter: Listed after the model number
- Applicable fluids: steam, Hot Water
- Maximum pressure: 0.7 MPa
- Maximum temperature: 180 deg.
- Connection Method: JIS Rc (union joint)
- Temperature Adjustment Range: For Heating/40 to 60, 50 to 70, 60 to 80, 70 to 90, 80 to 100 ° C
- For Low Temperature Heating: 15 to 35, 20 to 40, 35 to 55 ° C
- Lead tube length: 2m
- Body: CAC
- Valve body: CAC (Phosphor Bronze)
- Thermal Tube: SUS304
| Order No. | 64-4029-71 | |
|---|---|---|
| Model No. | OB-1G-20A | |
| Standard price |
JPY: 268,000
USD: 1,679.94
Excange rate 1USD= 159.53JPY
Valid price in Japan |
|
| Quantity | 1piece | |
| Stock in Japan |
|
|
| Supplier Stock |
|
|
Product Variations (Different Sizes, Specifications, Optional Products, etc.)
| Product image | Order No. | Name | Model No. | Quantity | Standard price | Valid price in Japan | Stock [Supplier Stock] |
|
|---|---|---|---|---|---|---|---|---|
 |
64-4029-70 | CAC Regulating valve (Threaded, Double Valve, Low Temperature Heating, External Pressure Type, Thermal Cylinder SUS) OB-1G-15A | OB-1G-15A | 1piece | JPY: 263,000 | USD: 1,648.59 |
|
|
 |
64-4029-71 | CAC Regulating valve (Threaded, Double Valve, Low Temperature Heating, External Pressure Type, Thermal Cylinder SUS) OB-1G-20A | OB-1G-20A | 1piece | JPY: 268,000 | USD: 1,679.94 |
|
|
 |
64-4029-72 | CAC Regulating valve (Threaded, Double Valve, Low Temperature Heating, External Pressure Type, Thermal Cylinder SUS) OB-1G-25A | OB-1G-25A | 1piece | JPY: 274,000 | USD: 1,717.55 |
|
|
 |
64-4029-73 | CAC Regulating valve (Threaded, Double Valve, Low Temperature Heating, External Pressure Type, Thermal Cylinder SUS) OB-1G-32A | OB-1G-32A | 1piece | JPY: 307,000 | USD: 1,924.40 |
|
|
 |
64-4029-74 | CAC Regulating valve (Threaded, Double Valve, Low Temperature Heating, External Pressure Type, Thermal Cylinder SUS) OB-1G-40A | OB-1G-40A | 1piece | JPY: 321,000 | USD: 2,012.16 |
|
