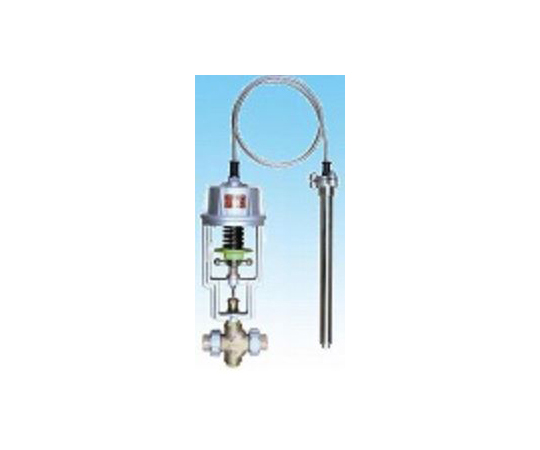

64-4029-67 CAC Regulating valve (Threaded, Double Valve, Heating, Internal Pressure Type, Thermosensitive Cylinder SUS) OB-1-25A
特徴
- Thermosensitive cylinder SUS304
- Used for heating temperature adjustment
- Easy piping with union type connection screw
- Tool is not needed as adjustment handle is attached
- Double valve structure and larger passage flow rate than single valve
仕様
- Specifications: Double Valve/For Heating
- Type: Temperature Control Valve
- Type: Internal pressure bellows type
- Nominal Diameter: Listed after the model number
- Applicable fluids: steam, Hot Water
- Maximum pressure: 0.7 MPa
- Maximum temperature: 180 deg.
- Connection Method: JIS Rc (union joint)
- Temperature Adjustment Range: 40 to 60, 50 to 70, 60 to 80, 70 to 90, 80 to 100 ° C
- Lead tube length: 2m
- Body: CAC
- Valve body: CAC (phosphor bronze)
- Thermal Tube: SUS304
| Order No. | 64-4029-67 | |
|---|---|---|
| 型番 | OB-1-25A | |
| Standard price |
JPY: 181,000
USD: 1,126.18
Excange rate 1USD= 160.72JPY
Valid price in Japan |
|
| Quantity | 1piece | |
| 在庫数 |
|
|
| サプライヤ在庫 |
|
|
