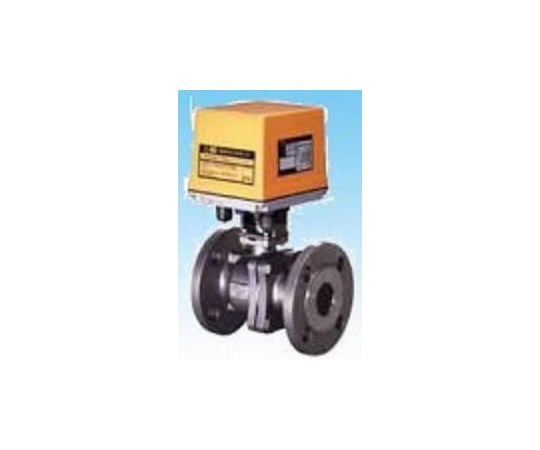

64-4029-64 ［Discontinued］SCS Electric Two-way Valve (flange ball type) MD-61-100A
Features
- Outdoor rainproof structure (JIS C0920 IP64)
- Uses thermal protector type for excellent durability without burning motor
- Fast and accurate start/stop operation
- Can be operated manually
- Built-in space heater for dew condensation prevention
- Made of stainless steel body
Spec
- Specifications: SCS Made/Ball Type
- Type: motorized valves
- Type: Two-way valve
- Type: Electric two-way valve
- Nominal Diameter: Listed after the model number
- Applicable fluids: Cold/Hot Water, Air
- Applicable Pressure Range: 0 to 1.0 MPa
- Applicable Temperature: 0 to 80 ° C
- rated voltage: AC100V, 50/60 Hz or 200 VAC, 50/60 Hz
- Operation method: ON/OFF
- Connection Method: JIS 10 K RF
- Body: SCS
- Valve Body: SUS or SCS
- Valve Seat: PTFE (Fluorine Plastic)
| Order No. | 64-4029-64 | |
|---|---|---|
| Model No. | MD-61-100A | |
| Standard price |
JPY: 542,000
USD: 3,397.48
Excange rate 1USD= 159.53JPY
Valid price in Japan |
|
| Quantity | 1piece | |
|
||
| Stock in Japan | - | |
Product Variations (Different Sizes, Specifications, Optional Products, etc.)
| Product image | Order No. | Name | Model No. | Quantity | Standard price | Valid price in Japan | Stock [Supplier Stock] |
|
|---|---|---|---|---|---|---|---|---|
 |
64-4029-62 | ［Discontinued］SCS Electric Two-way Valve (flange ball type) MD-61-65A | MD-61-65A | 1piece | JPY: 370,000 | USD: 2,319.31 |
-
|
|
 |
64-4029-63 | ［Discontinued］SCS Electric Two-way Valve (flange ball type) MD-61-80A | MD-61-80A | 1piece | JPY: 453,000 | USD: 2,839.59 |
-
|
|
 |
64-4029-64 | ［Discontinued］SCS Electric Two-way Valve (flange ball type) MD-61-100A | MD-61-100A | 1piece | JPY: 542,000 | USD: 3,397.48 |
-
|
