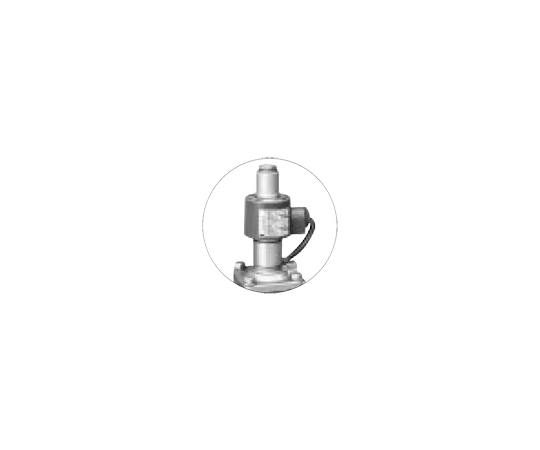

64-4029-48 Redman SCS Diaphragm Type Solenoid Valve (Flange, Energization Closed, 100/200 VAC) DP-18C-40A
Features
- Compatible with gas liquids mainly by differential pressure "0" operation
- Uses synthetic rubber for valve part and no leakage
- Can freely mount horizontally and vertically to obtain high flow rate (Cv value)
- Energized shape closed
- Stainless steel flange type
Spec
- Specifications: SCS Made, AC, Open When Powered
- Type: Solenoid Valve
- Type: DP Type (pilot type)
- Format: Diaphragm
- Nominal Diameter: Listed after the model number
- Applicable Fluid: Air, Cold/Hot Water, Oil (20 cSt or less)
- Applicable Pressure Range: 0 to 1.0 MPa (Vacuum cannot be used)
- Minimum differential operating pressure: 0 MPa
- Maximum temperature: 60 deg.
- rated voltage: 100/200 VAC Selection Type/50/60 Hz Shared
- Operating method: energized open type
- Connection Method: JIS 10 KFF
- valve box: SCS
- Valve body: NBR (Diaphragm)
| Order No. | 64-4029-48 | |
|---|---|---|
| Model No. | DP-18C-40A | |
| Standard price |
JPY: 319,000
USD: 1,999.62
Excange rate 1USD= 159.53JPY
Valid price in Japan |
|
| Quantity | 1piece | |
| Stock in Japan |
|
|
| Supplier Stock |
|
|
Product Variations (Different Sizes, Specifications, Optional Products, etc.)
| Product image | Order No. | Name | Model No. | Quantity | Standard price | Valid price in Japan | Stock [Supplier Stock] |
|
|---|---|---|---|---|---|---|---|---|
 |
64-4029-44 | Redman SCS Diaphragm Type Solenoid Valve (Flange, Energization Closed, 100/200 VAC) DP-18C-15A | DP-18C-15A | 1piece | JPY: 198,000 | USD: 1,241.15 |
|
|
 |
64-4029-45 | Redman SCS Diaphragm Type Solenoid Valve (Flange, Energization Closed, 100/200 VAC) DP-18C-20A | DP-18C-20A | 1piece | JPY: 214,000 | USD: 1,341.44 |
|
|
 |
64-4029-46 | Redman SCS Diaphragm Type Solenoid Valve (Flange, Energization Closed, 100/200 VAC) DP-18C-25A | DP-18C-25A | 1piece | JPY: 234,000 | USD: 1,466.81 |
|
|
 |
64-4029-47 | Redman SCS Diaphragm Type Solenoid Valve (Flange, Energization Closed, 100/200 VAC) DP-18C-32A | DP-18C-32A | 1piece | JPY: 291,000 | USD: 1,824.11 |
|
|
 |
64-4029-48 | Redman SCS Diaphragm Type Solenoid Valve (Flange, Energization Closed, 100/200 VAC) DP-18C-40A | DP-18C-40A | 1piece | JPY: 319,000 | USD: 1,999.62 |
|
|
 |
64-4029-49 | Redman SCS Diaphragm Type Solenoid Valve (Flange, Energization Closed, 100/200 VAC) DP-18C-50A | DP-18C-50A | 1piece | JPY: 394,000 | USD: 2,469.76 |
|
