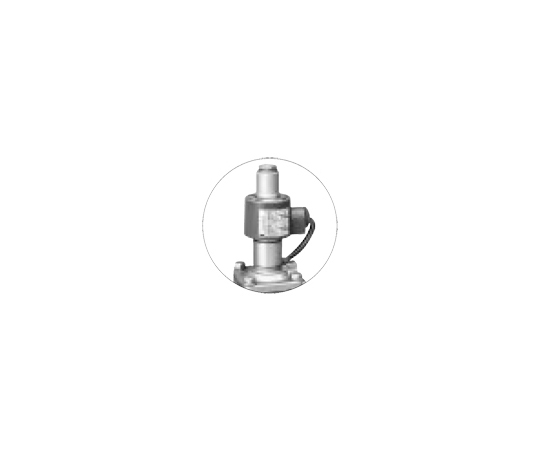

64-4029-24 Redman SCS Diaphragm Type Solenoid Valve (Threaded, Energized Closed, 100/200 VAC) DP-16C-40A
特徴
- Compatible with gaseous liquids mainly with differential pressure "0" operation
- Uses synthetic rubber for valve part and no leakage
- Can freely mount horizontally and vertically to obtain high flow rate (Cv value)
- Open when energized
- Made of stainless steel
仕様
- Specifications: SCS Made, AC, Open When Powered
- Type: Solenoid Valve
- Type: DP Type (pilot type)
- Format: Diaphragm
- Nominal Diameter: Listed after the model number
- Applicable Fluid: Air, Cold/Hot Water, Oil (20 cSt or less)
- Applicable Pressure Range: 0 to 1.0 MPa (Vacuum cannot be used)
- Minimum differential operating pressure: 0 MPa
- Maximum temperature: 60 deg.
- rated voltage: 100/200 VAC Selection Type/50/60 Hz Shared
- Method of operation: closed when energized
- Connection Method: JIS Rc
- valve box: SCS
- Valve body: NBR (Diaphragm)
| アズワン品番 | 64-4029-24 | |
|---|---|---|
| 型番 | DP-16C-40A | |
| 標準価格 |
JPY: 191,000
USD: 1,197.27
Excange rate 1USD= 159.53JPY
Valid price in Japan |
|
| 入り数 | 1piece | |
| 在庫数 |
|
|
| サプライヤ在庫 |
|
|
商品のバリエーション （サイズ違い・スペック違い・オプション品など）
| 商品イメージ | アズワン品番 | 商品名 | 型番 | Quantity | 標準価格 | Valid price in Japan | Stock [Supplier Stock] |
|
|---|---|---|---|---|---|---|---|---|
 |
64-4029-20 | Redman SCS Diaphragm Type Solenoid Valve (Threaded, Energized Closed, 100/200 VAC) DP-16C-15A | DP-16C-15A | 1piece | JPY: 106,000 | USD: 664.45 |
|
|
 |
64-4029-21 | Redman SCS Diaphragm Type Solenoid Valve (Threaded, Energized Closed, 100/200 VAC) DP-16C-20A | DP-16C-20A | 1piece | JPY: 117,000 | USD: 733.40 |
|
|
 |
64-4029-22 | Redman SCS Diaphragm Type Solenoid Valve (Threaded, Energized Closed, 100/200 VAC) DP-16C-25A | DP-16C-25A | 1piece | JPY: 125,000 | USD: 783.55 |
|
|
 |
64-4029-23 | Redman SCS Diaphragm Type Solenoid Valve (Threaded, Energized Closed, 100/200 VAC) DP-16C-32A | DP-16C-32A | 1piece | JPY: 167,000 | USD: 1,046.83 |
|
|
 |
64-4029-24 | Redman SCS Diaphragm Type Solenoid Valve (Threaded, Energized Closed, 100/200 VAC) DP-16C-40A | DP-16C-40A | 1piece | JPY: 191,000 | USD: 1,197.27 |
|
|
 |
64-4029-25 | Redman SCS Diaphragm Type Solenoid Valve (Threaded, Energized Closed, 100/200 VAC) DP-16C-50A | DP-16C-50A | 1piece | JPY: 252,000 | USD: 1,579.64 |
|
