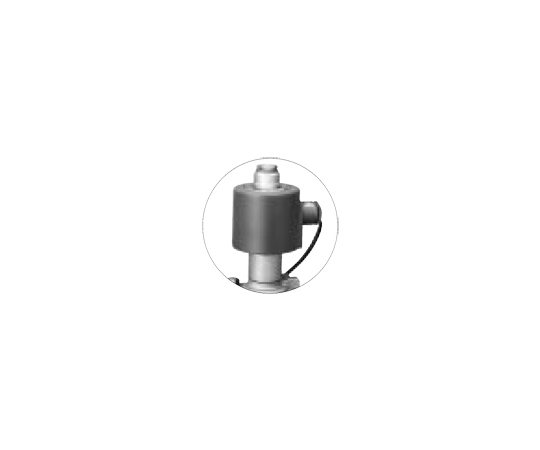

64-4029-09 Redman CAC Diaphragm Type Solenoid Valve (Flange, Energization Closed, DC24V) DP-14CD-20A
Features
- Compatible with gases and liquids mainly with differential pressure "0" operation
- Uses synthetic rubber for valve part and no leakage
- Can freely mount horizontally and vertically to obtain high flow rate (Cv value)
- Energized shape closed
- Flange type
Spec
- Specifications: Closed on AC/Current
- Type: Solenoid Valve
- Type: DP Type (pilot type)
- Format: Diaphragm
- Nominal Diameter: Listed after the model number
- Applicable Fluid: Air, Cold/Hot Water, Oil (20 cSt or less)
- Applicable Pressure Range: 0 to 1.0 MPa (Vacuum cannot be used)
- Minimum differential operating pressure: 0 MPa
- Maximum temperature: 60 deg.
- rated voltage : DC24V
- Method of operation: closed when energized
- Connection Method: JIS 10 KFF
- valve casing: CAC
- Valve body: NBR (Diaphragm)
| Order No. | 64-4029-09 | |
|---|---|---|
| Model No. | DP-14CD-20A | |
| Standard price |
JPY: 164,000
USD: 1,028.73
Excange rate 1USD= 159.42JPY
Valid price in Japan |
|
| Quantity | 1piece | |
| Stock in Japan |
|
|
| Supplier Stock |
|
|
Product Variations (Different Sizes, Specifications, Optional Products, etc.)
| Product image | Order No. | Name | Model No. | Quantity | Standard price | Valid price in Japan | Stock [Supplier Stock] |
|
|---|---|---|---|---|---|---|---|---|
 |
64-4029-08 | Redman CAC Diaphragm Type Solenoid Valve (Flange, Energization Closed, DC24V) DP-14CD-15A | DP-14CD-15A | 1piece | JPY: 162,000 | USD: 1,016.18 |
|
|
 |
64-4029-09 | Redman CAC Diaphragm Type Solenoid Valve (Flange, Energization Closed, DC24V) DP-14CD-20A | DP-14CD-20A | 1piece | JPY: 164,000 | USD: 1,028.73 |
|
|
 |
64-4029-10 | Redman CAC Diaphragm Type Solenoid Valve (Flange, Energization Closed, DC24V) DP-14CD-25A | DP-14CD-25A | 1piece | JPY: 175,000 | USD: 1,097.73 |
|
|
 |
64-4029-11 | Redman CAC Diaphragm Type Solenoid Valve (Flange, Energization Closed, DC24V) DP-14CD-32A | DP-14CD-32A | 1piece | JPY: 204,000 | USD: 1,279.64 |
|
|
 |
64-4029-12 | Redman CAC Diaphragm Type Solenoid Valve (Flange, Energization Closed, DC24V) DP-14CD-40A | DP-14CD-40A | 1piece | JPY: 216,000 | USD: 1,354.91 |
|
|
 |
64-4029-13 | Redman CAC Diaphragm Type Solenoid Valve (Flange, Energization Closed, DC24V) DP-14CD-50A | DP-14CD-50A | 1piece | JPY: 241,000 | USD: 1,511.73 |
|
