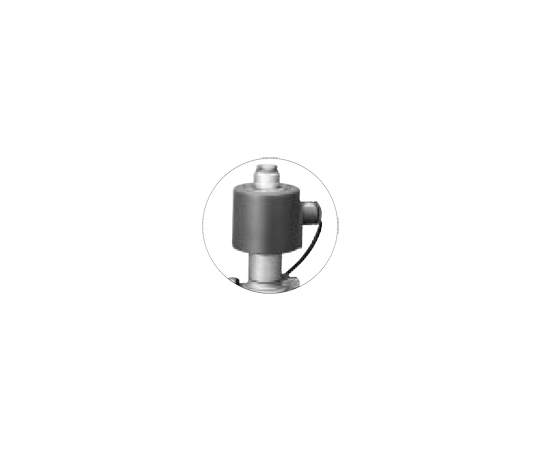

64-4029-01 Redman CAC Diaphragm Type Solenoid Valve (Screw-in, Energization Closed, DC24V) DP-12CD-50A
Features
- Compatible with gaseous liquids mainly with differential pressure "0" operation
- Uses synthetic rubber for valve part and no leakage
- Can freely mount horizontally and vertically to obtain high flow rate (Cv value)
- Energized closed
- DC (DC) type
Spec
- Specifications: DC/energized close
- Type: Solenoid Valve
- Type: DP Type (pilot type)
- Format: Diaphragm
- Nominal Diameter: Listed after the model number
- Applicable Fluid: Air, Cold/Hot Water, Oil (20 cSt or less)
- Applicable Pressure Range: 0 to 1.0 MPa (Vacuum cannot be used)
- Minimum differential operating pressure: 0 MPa
- Maximum temperature: 60 deg.
- rated voltage : DC24V
- Method of operation: closed when energized
- Connection Method: JIS Rc
- valve casing: CAC
- Valve body: NBR (Diaphragm)
| Order No. | 64-4029-01 | |
|---|---|---|
| Model No. | DP-12CD-50A | |
| Standard price |
JPY: 148,000
USD: 927.73
Excange rate 1USD= 159.53JPY
Valid price in Japan |
|
| Quantity | 1piece | |
| Stock in Japan |
|
|
| Supplier Stock |
|
|
Product Variations (Different Sizes, Specifications, Optional Products, etc.)
| Product image | Order No. | Name | Model No. | Quantity | Standard price | Valid price in Japan | Stock [Supplier Stock] |
|
|---|---|---|---|---|---|---|---|---|
 |
64-4028-94 | Redman CAC Diaphragm Type Solenoid Valve (Screw-in, Energization Closed, DC24V) DP-12CD-10A | DP-12CD-10A | 1piece | JPY: 103,000 | USD: 645.65 |
|
|
 |
64-4028-95 | Redman CAC Diaphragm Type Solenoid Valve (Screw-in, Energization Closed, DC24V) DP-12CD-15A | DP-12CD-15A | 1piece | JPY: 104,000 | USD: 651.92 |
|
|
 |
64-4028-96 | Redman CAC Diaphragm Type Solenoid Valve (Screw-in, Energization Closed, DC24V) DP-12CD-20A | DP-12CD-20A | 1piece | JPY: 106,000 | USD: 664.45 |
|
|
 |
64-4028-97 | Redman CAC Diaphragm Type Solenoid Valve (Screw-in, Energization Closed, DC24V) DP-12CD-25A | DP-12CD-25A | 1piece | JPY: 109,000 | USD: 683.26 |
|
|
 |
64-4028-98 | Redman CAC Diaphragm Type Solenoid Valve (Screw-in, Energization Closed, DC24V) DP-12CD-32A | DP-12CD-32A | 1piece | JPY: 127,000 | USD: 796.09 |
|
|
 |
64-4028-99 | Redman CAC Diaphragm Type Solenoid Valve (Screw-in, Energization Closed, DC24V) DP-12CD-40A | DP-12CD-40A | 1piece | JPY: 137,000 | USD: 858.77 |
|
|
 |
64-4029-01 | Redman CAC Diaphragm Type Solenoid Valve (Screw-in, Energization Closed, DC24V) DP-12CD-50A | DP-12CD-50A | 1piece | JPY: 148,000 | USD: 927.73 |
|
