64-4028-91 SCS solenoid valve (Screws/FKM/Cold/Hot Water/Air/nitrogen gas, etc. 0 to 0.8 MPa) DD-3-8-10A
Features

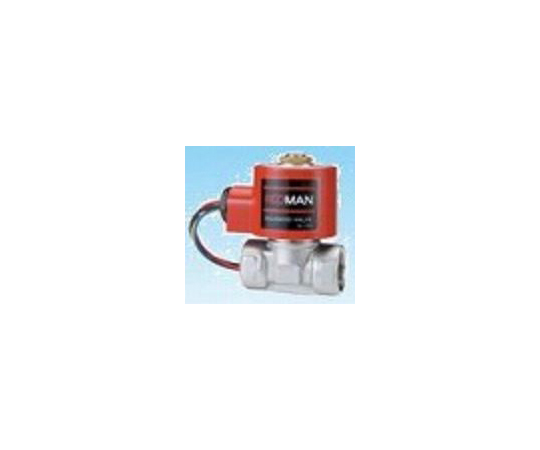

- Stainless Steel (SCS14 A) Direct-acting Solenoid Valve
- Optional horizontal or vertical mounting position (However, pipe the coils above the level.)
- The protection structure of the coil is IP64 (Dust-resistant and match-proof) with a 100 V/200 V selective
Spec
- Specifications: Small capacity
- Type: Solenoid Valve
- Type: DD Type (direct acting type)
- Format: Linear
- Nominal Diameter: Listed after the model number
- Fluid: steam, Cold/Hot Water, Air, nitrogen gas, carbon dioxide gas, Argon Gas, Oil (20 cSt or less)
- Applied Pressure: 0 to 0.8 MPa
- Maximum temperature: 100 deg.
- Orifice (mm): 9.5 (DD -2 -8 is 4.0)
- Operating method: energized open type
- Connection Method: JIS Rc
- Fluid Viscosity: 20 cSt or Less
- Body: SCS 14 A
- Plunger: SCS 14 A
- Disk: Viton (FKM)
| Order No. | 64-4028-91 | |
|---|---|---|
| Model No. | DD-3-8-10A | |
| Standard price |
JPY: 42,400
USD: 263.81
Excange rate 1USD= 160.72JPY
Valid price in Japan |
|
| Quantity | 1piece | |
| Stock in Japan |
|
|
| Supplier Stock |
|
|
Product Variations (Different Sizes, Specifications, Optional Products, etc.)
| Product image | Order No. | Name | Model No. | Quantity | Standard price | Valid price in Japan | Stock [Supplier Stock] |
|
|---|---|---|---|---|---|---|---|---|
 |
64-4028-88 | SCS solenoid valve (Screws/FKM/Cold/Hot Water/Air/nitrogen gas, etc. 0 to 0.15 MPa) DD-3-10A | DD-3-10A | 1piece | JPY: 42,400 | USD: 263.81 |
|
|
 |
64-4028-89 | SCS solenoid valve (Screws/FKM/Cold/Hot Water/Air/nitrogen gas, etc. 0 to 0.15 MPa) DD-3-15A | DD-3-15A | 1piece | JPY: 44,000 | USD: 273.77 |
|
|
 |
64-4028-90 | SCS solenoid valve (Screws/FKM/Cold/Hot Water/Air/nitrogen gas, etc. 0 to 0.15 MPa) DD-3-20A | DD-3-20A | 1piece | JPY: 46,200 | USD: 287.46 |
|
|
 |
64-4028-91 | SCS solenoid valve (Screws/FKM/Cold/Hot Water/Air/nitrogen gas, etc. 0 to 0.8 MPa) DD-3-8-10A | DD-3-8-10A | 1piece | JPY: 42,400 | USD: 263.81 |
|
|
 |
64-4028-92 | SCS solenoid valve (Screws/FKM/Cold/Hot Water/Air/nitrogen gas, etc. 0 to 0.8 MPa) DD-3-8-15A | DD-3-8-15A | 1piece | JPY: 44,000 | USD: 273.77 |
|
|
 |
64-4028-93 | SCS solenoid valve (Screws/FKM/Cold/Hot Water/Air/nitrogen gas, etc. 0 to 0.8 MPa) DD-3-8-20A | DD-3-8-20A | 1piece | JPY: 46,200 | USD: 287.46 |
|
