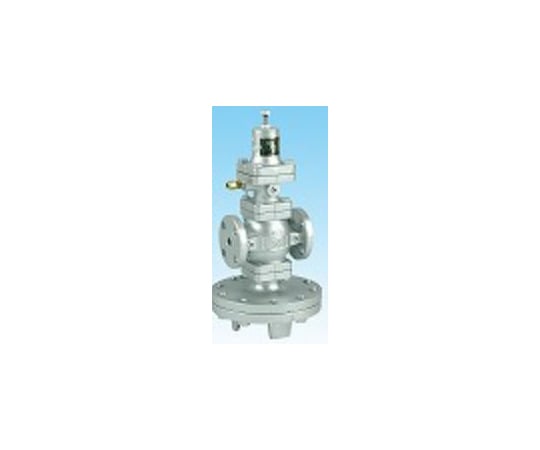

64-4028-67 FCD/SUS Primary Pressure Regulating Valve (Screw-in/steam) GPR-2000-15A
特徴
- Large Capacity, Excellent Performance, Wide Range of Pressure Adjustment
- High Sealing and Amazing Durability
仕様
- Specifications: For Pilot steam
- Type: primary pressure regulator
- Format: Pilot diaphragm type
- Nominal Diameter: Listed after the model number
- Applicable Fluid: steam

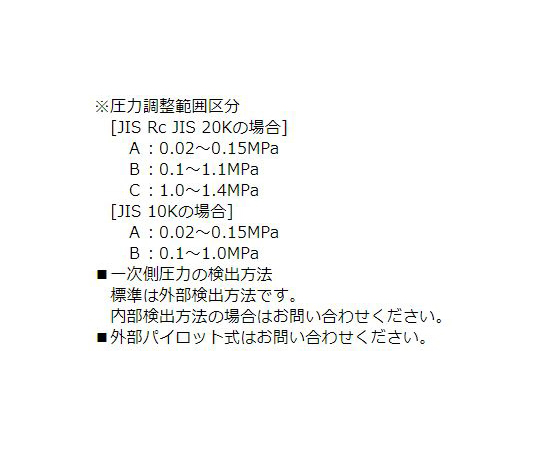

- Pressure adjustment range: 0.02 to 1.4 MPa
- Maximum temperature: 220 deg.
- Connection Method: JIS Rc
- Body: FCD 450
- Valve Body/Valve Seat: SUS
- Diaphragm: SUS
- Piston Cylinder: SUS
| アズワン品番 | 64-4028-67 | |
|---|---|---|
| 型番 | GPR-2000-15A | |
| 標準価格 |
JPY: 266,000
USD: 1,655.05
Excange rate 1USD= 160.72JPY
Valid price in Japan |
|
| 入り数 | 1piece | |
| 在庫数 |
|
|
| サプライヤ在庫 |
|
|
商品のバリエーション （サイズ違い・スペック違い・オプション品など）
| 商品イメージ | アズワン品番 | 商品名 | 型番 | 入り数 | 標準価格 | 標準価格(ドル) | アズワン在庫 [サプライヤ在庫] |
|
|---|---|---|---|---|---|---|---|---|
 |
64-4028-67 | FCD/SUS Primary Pressure Regulating Valve (Screw-in/steam) GPR-2000-15A | GPR-2000-15A | 1piece | JPY: 266,000 | USD: 1,655.05 |
|
|
 |
64-4028-68 | FCD/SUS Primary Pressure Regulating Valve (Screw-in/steam) GPR-2000-20A | GPR-2000-20A | 1piece | JPY: 266,000 | USD: 1,655.05 |
|
|
 |
64-4028-69 | FCD/SUS Primary Pressure Regulating Valve (Screw-in/steam) GPR-2000-25A | GPR-2000-25A | 1piece | JPY: 288,000 | USD: 1,791.94 |
|
|
 |
64-4028-70 | FCD/SUS Primary Pressure Regulating Valve (Screw-in/steam) GPR-2000-32A | GPR-2000-32A | 1piece | JPY: 308,000 | USD: 1,916.38 |
|
|
 |
64-4028-71 | FCD/SUS Primary Pressure Regulating Valve (Screw-in/steam) GPR-2000-40A | GPR-2000-40A | 1piece | JPY: 313,000 | USD: 1,947.49 |
|
|
 |
64-4028-72 | FCD/SUS Primary Pressure Regulating Valve (Screw-in/steam) GPR-2000-50A | GPR-2000-50A | 1piece | JPY: 423,000 | USD: 2,631.91 |
|
