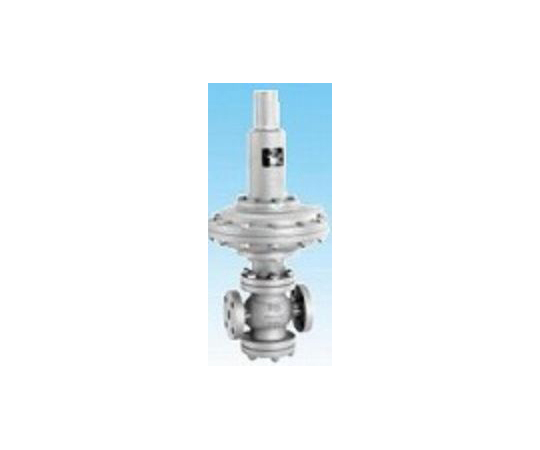

64-4028-63 FC/SUS Primary Pressure Regulating Valve (Flange/Micropressure gas) GD-4R-80A
Features
- Primary Pressure Regulator Valve Used as Safety Device for Fine Pressure Adjustment of Air, Gas, etc.
- Effective Pressure Receiving Area of Diaphragm is Large and Accuracy against Set Pressure is Effective
- No external leakage due to lack of ground part
Spec
- Specifications: For Fine Pressure Air
- Type: primary pressure regulator
- Format: Linear
- Nominal Diameter: Listed after the model number
- Applicable Fluid: Air, Other Non-Dangerous Fluid
- Pressure adjustment range: 2 to 200 kPa
- Maximum temperature: 80 deg.
- Connection Method: JIS 10 KFF
- Body: FC
- Valve Body/Valve Seat: SUS
- diaphragm: NBR
- Valve Rod: SUS
| Order No. | 64-4028-63 | |
|---|---|---|
| Model No. | GD-4R-80A | |
| Standard price |
JPY: 747,000
USD: 4,647.84
Excange rate 1USD= 160.72JPY
Valid price in Japan |
|
| Quantity | 1piece | |
| Stock in Japan |
|
|
| Supplier Stock |
|
|
Product Variations (Different Sizes, Specifications, Optional Products, etc.)
| Product image | Order No. | Name | Model No. | Quantity | Standard price | Valid price in Japan | Stock [Supplier Stock] |
|
|---|---|---|---|---|---|---|---|---|
 |
64-4028-57 | FC/SUS Primary Pressure Regulating Valve (Flange/Micropressure gas) GD-4R-20A | GD-4R-20A | 1piece | JPY: 421,000 | USD: 2,619.46 |
|
|
 |
64-4028-58 | FC/SUS Primary Pressure Regulating Valve (Flange/Micropressure gas) GD-4R-25A | GD-4R-25A | 1piece | JPY: 427,000 | USD: 2,656.79 |
|
|
 |
64-4028-59 | FC/SUS Primary Pressure Regulating Valve (Flange/Micropressure gas) GD-4R-32A | GD-4R-32A | 1piece | JPY: 488,000 | USD: 3,036.34 |
|
|
 |
64-4028-60 | FC/SUS Primary Pressure Regulating Valve (Flange/Micropressure gas) GD-4R-40A | GD-4R-40A | 1piece | JPY: 488,000 | USD: 3,036.34 |
|
|
 |
64-4028-61 | FC/SUS Primary Pressure Regulating Valve (Flange/Micropressure gas) GD-4R-50A | GD-4R-50A | 1piece | JPY: 533,000 | USD: 3,316.33 |
|
|
 |
64-4028-62 | FC/SUS Primary Pressure Regulating Valve (Flange/Micropressure gas) GD-4R-65A | GD-4R-65A | 1piece | JPY: 654,000 | USD: 4,069.19 |
|
|
 |
64-4028-63 | FC/SUS Primary Pressure Regulating Valve (Flange/Micropressure gas) GD-4R-80A | GD-4R-80A | 1piece | JPY: 747,000 | USD: 4,647.84 |
|
|
 |
64-4028-64 | FC/SUS Primary Pressure Regulating Valve (Flange/Micropressure gas) GD-4R-100A | GD-4R-100A | 1piece | JPY: 1,000,000 | USD: 6,222.00 |
|
|
 |
64-4028-65 | FC/SUS Primary Pressure Regulating Valve (Flange/Micropressure gas) GD-4R-125A | GD-4R-125A | 1piece | JPY: 1,390,000 | USD: 8,648.58 |
|
|
 |
64-4028-66 | FC/SUS Primary Pressure Regulating Valve (Flange/Micropressure gas) GD-4R-150A | GD-4R-150A | 1piece | JPY: 1,630,000 | USD: 10,141.86 |
|
