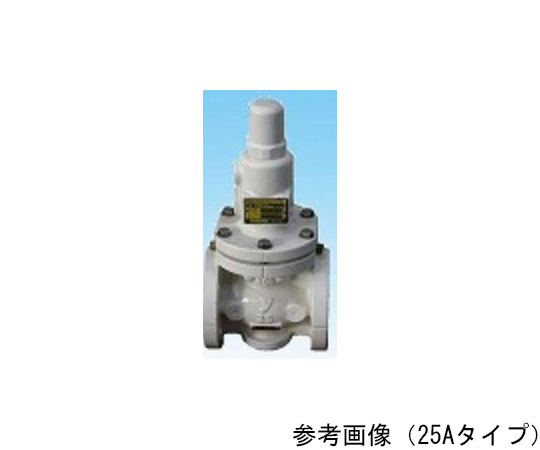

64-4028-39 FCD Nylon-Coated Primary Pressure Regulating Valve/Falling Water Prevention Valve (Flange) GD-20RC-150A
Features
- Used as a relief valve for pumps. Maintains constant pressure in the pipe during pump operation.
- Adjustable valve for preventing water from falling from the return pipe of an open circuit installed in a medium to high-rise building.
- Nylon coated inside and outside body with nylon 11. Excellent corrosion resistance.
Spec
- Specifications: primary pressure control valve and water drop prevention valve
- Type: primary pressure control valve, flood prevention valve
- Format: Linear
- Nominal Diameter: Listed after the model number
- Applicable fluids: Cold/hot water, oil, air
- Pressure adjustment range: 0.05 to 0.7 MPa
- Maximum temperature: 80 deg.
- Connection Method: JIS 10 KFF
- Body: FCD 450
- Valve Body/Seat: NBR/SCS (CAC)
- diaphragm: NBR
- Valve Rod: SUS
| Order No. | 64-4028-39 | |
|---|---|---|
| Model No. | GD-20RC-150A | |
| Standard price |
JPY: 1,260,000
USD: 7,839.72
Excange rate 1USD= 160.72JPY
Valid price in Japan |
|
| Quantity | 1piece | |
| Stock in Japan |
|
|
| Supplier Stock |
|
|
Product Variations (Different Sizes, Specifications, Optional Products, etc.)
| Product image | Order No. | Name | Model No. | Quantity | Standard price | Valid price in Japan | Stock [Supplier Stock] |
|
|---|---|---|---|---|---|---|---|---|
 |
64-4028-29 | FCD Nylon-Coated Primary Pressure Regulating Valve/Falling Water Prevention Valve (Flange) GD-20RC-15A | GD-20RC-15A | 1piece | JPY: 186,000 | USD: 1,157.29 |
|
|
 |
64-4028-30 | FCD Nylon-Coated Primary Pressure Regulating Valve/Falling Water Prevention Valve (Flange) GD-20RC-20A | GD-20RC-20A | 1piece | JPY: 186,000 | USD: 1,157.29 |
|
|
 |
64-4028-31 | FCD Nylon-Coated Primary Pressure Regulating Valve/Falling Water Prevention Valve (Flange) GD-20RC-25A | GD-20RC-25A | 1piece | JPY: 189,000 | USD: 1,175.96 |
|
|
 |
64-4028-32 | FCD Nylon-Coated Primary Pressure Regulating Valve/Falling Water Prevention Valve (Flange) GD-20RC-32A | GD-20RC-32A | 1piece | JPY: 217,000 | USD: 1,350.17 |
|
|
 |
64-4028-33 | FCD Nylon-Coated Primary Pressure Regulating Valve/Falling Water Prevention Valve (Flange) GD-20RC-40A | GD-20RC-40A | 1piece | JPY: 223,000 | USD: 1,387.51 |
|
|
 |
64-4028-34 | FCD Nylon-Coated Primary Pressure Regulating Valve/Falling Water Prevention Valve (Flange) GD-20RC-50A | GD-20RC-50A | 1piece | JPY: 237,000 | USD: 1,474.61 |
|
|
 |
64-4028-35 | FCD Nylon-Coated Primary Pressure Regulating Valve/Falling Water Prevention Valve (Flange) GD-20RC-65A | GD-20RC-65A | 1piece | JPY: 338,000 | USD: 2,103.04 |
|
|
 |
64-4028-36 | FCD Nylon-Coated Primary Pressure Regulating Valve/Falling Water Prevention Valve (Flange) GD-20RC-80A | GD-20RC-80A | 1piece | JPY: 412,000 | USD: 2,563.46 |
|
|
 |
64-4028-37 | FCD Nylon-Coated Primary Pressure Regulating Valve/Falling Water Prevention Valve (Flange) GD-20RC-100A | GD-20RC-100A | 1piece | JPY: 548,000 | USD: 3,409.66 |
|
|
 |
64-4028-38 | FCD Nylon-Coated Primary Pressure Regulating Valve/Falling Water Prevention Valve (Flange) GD-20RC-125A | GD-20RC-125A | 1piece | JPY: 979,000 | USD: 6,091.34 |
|
|
 |
64-4028-39 | FCD Nylon-Coated Primary Pressure Regulating Valve/Falling Water Prevention Valve (Flange) GD-20RC-150A | GD-20RC-150A | 1piece | JPY: 1,260,000 | USD: 7,839.72 |
|
