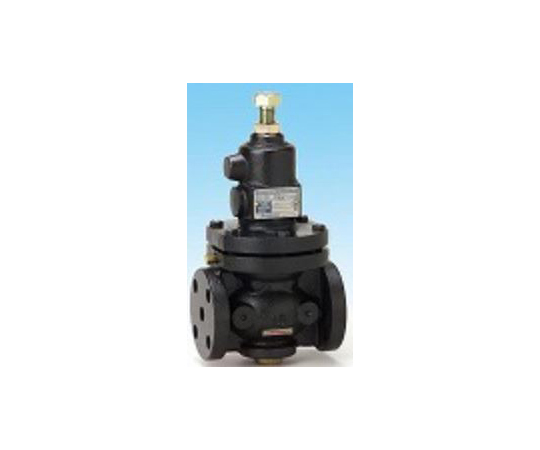

64-4028-21 Primary Pressure Regulating Valve/Falling Water Prevention Valve (10 KFF) Made of SCS GD-20R-SCS-15A
Features
- It is used as a relief valve for pumps. It maintains constant pressure in the pipe during pump operation.
- An adjustment valve for preventing water fall in the return pipe of an open circuit installed in a medium-rise building.
Spec
- Specifications: primary pressure control valve and water drop prevention valve
- Type: primary pressure control valve, flood prevention valve
- Format: Linear
- Nominal Diameter: Listed after the model number
- Applicable fluids: Cold/hot water, oil, air
- Pressure adjustment range: 0.05 to 0.7 MPa
- Maximum temperature: 80 deg.
- Connection Method: JIS 10 KFF
- Body: FCD 450
- Valve Body/Seat: NBR/SCS (CAC)
- diaphragm: NBR
- Valve Rod: SUS
| Order No. | 64-4028-21 | |
|---|---|---|
| Model No. | GD-20R-SCS-15A | |
| Standard price |
JPY: 384,000
USD: 2,407.07
Excange rate 1USD= 159.53JPY
Valid price in Japan |
|
| Quantity | 1piece | |
| Stock in Japan |
|
|
| Supplier Stock |
|
|
Product Variations (Different Sizes, Specifications, Optional Products, etc.)
| Product image | Order No. | Name | Model No. | Quantity | Standard price | Valid price in Japan | Stock [Supplier Stock] |
|
|---|---|---|---|---|---|---|---|---|
 |
64-4028-21 | Primary Pressure Regulating Valve/Falling Water Prevention Valve (10 KFF) Made of SCS GD-20R-SCS-15A | GD-20R-SCS-15A | 1piece | JPY: 384,000 | USD: 2,407.07 |
|
|
 |
64-4028-22 | Primary Pressure Regulating Valve/Falling Water Prevention Valve (10 KFF) Made of SCS GD-20R-SCS-20A | GD-20R-SCS-20A | 1piece | JPY: 384,000 | USD: 2,407.07 |
|
|
 |
64-4028-23 | Primary Pressure Regulating Valve/Falling Water Prevention Valve (10 KFF) Made of SCS GD-20R-SCS-25A | GD-20R-SCS-25A | 1piece | JPY: 451,000 | USD: 2,827.05 |
|
|
 |
64-4028-24 | Primary Pressure Regulating Valve/Falling Water Prevention Valve (10 KFF) Made of SCS GD-20R-SCS-32A | GD-20R-SCS-32A | 1piece | JPY: 575,000 | USD: 3,604.34 |
|
|
 |
64-4028-25 | Primary Pressure Regulating Valve/Falling Water Prevention Valve (10 KFF) Made of SCS GD-20R-SCS-40A | GD-20R-SCS-40A | 1piece | JPY: 576,000 | USD: 3,610.61 |
|
|
 |
64-4028-26 | Primary Pressure Regulating Valve/Falling Water Prevention Valve (10 KFF) Made of SCS GD-20R-SCS-50A | GD-20R-SCS-50A | 1piece | JPY: 623,000 | USD: 3,905.22 |
|
|
 |
64-4028-27 | Primary Pressure Regulating Valve/Falling Water Prevention Valve (10 KFF) Made of SCS GD-20R-SCS-65A | GD-20R-SCS-65A | 1piece | JPY: 838,200 | USD: 5,254.18 |
|
|
 |
64-4028-28 | Primary Pressure Regulating Valve/Falling Water Prevention Valve (10 KFF) Made of SCS GD-20R-SCS-80A | GD-20R-SCS-80A | 1piece | JPY: 952,600 | USD: 5,971.29 |
|
