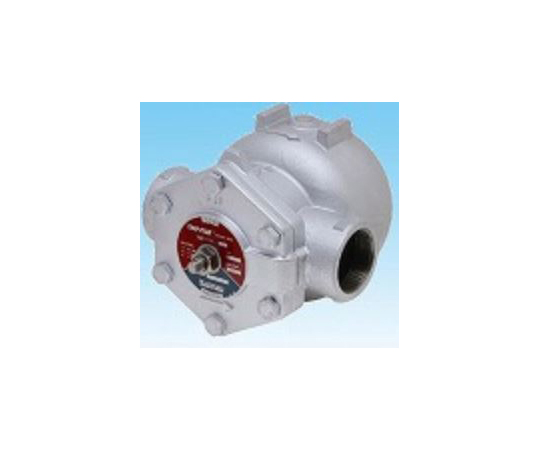

64-4027-68 FCD Float Type Steam Trap Valve SUS/Large Number Trap TSF-11-10-25A
Features
- Main parts such as float and air vent and cock are integrated structure
- Can be piped in all directions 360° in the flow direction by rotating cock
- All main parts are made of stainless steel to improve corrosion resistance and durability
- Uses bellows type air vent for high pressure
- Built-in strainer
- Large trap with maximum discharge of 3,400 kg/h
Spec
- Specifications: 360 ° omni-directional piping possible.
- Type: steam traps
- Type: Float
- Nominal Diameter: Listed after the model number
- fluids: steam drain
- Applicable Pressure Range: 0.01 to 1.0 MPa
- Maximum operating temperature: 220 ° C
- connections: JIS Rc
- Body: FCD 450
- Valve Body/Valve Seat: SUS
- Float: SUS
| Order No. | 64-4027-68 | |
|---|---|---|
| Model No. | TSF-11-10-25A | |
| Standard price |
JPY: 186,000
USD: 1,165.93
Excange rate 1USD= 159.53JPY
Valid price in Japan |
|
| Quantity | 1piece | |
| Stock in Japan |
|
|
| Supplier Stock |
|
|
Product Variations (Different Sizes, Specifications, Optional Products, etc.)
| Product image | Order No. | Name | Model No. | Quantity | Standard price | Valid price in Japan | Stock [Supplier Stock] |
|
|---|---|---|---|---|---|---|---|---|
 |
64-4027-68 | FCD Float Type Steam Trap Valve SUS/Large Number Trap TSF-11-10-25A | TSF-11-10-25A | 1piece | JPY: 186,000 | USD: 1,165.93 |
|
|
 |
64-4027-69 | FCD Float Type Steam Trap Valve SUS/Large Number Trap TSF-11-10-32A | TSF-11-10-32A | 1piece | JPY: 209,000 | USD: 1,310.10 |
|
|
 |
64-4027-70 | FCD Float Type Steam Trap Valve SUS/Large Number Trap TSF-11-10-40A | TSF-11-10-40A | 1piece | JPY: 217,000 | USD: 1,360.25 |
|
|
 |
64-4027-71 | FCD Float Type Steam Trap Valve SUS/Large Number Trap TSF-11-10-50A | TSF-11-10-50A | 1piece | JPY: 227,000 | USD: 1,422.93 |
|
