• 64-4027-62 FC Float Type Steam Trap (Screw-in, General Industrial 0.88 MPa)　TF-6-32A

Yoshitake Inc.

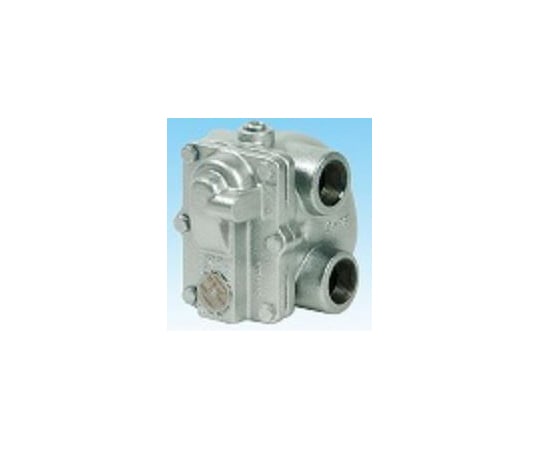

64-4027-62　FC Float Type Steam Trap (Screw-in, General Industrial 0.88 MPa)　TF-6-32A

• 印刷

• PDF

他のバリエーション

•

特徴

• General industrial use
• Maintainable even when the main body is piped since all main parts are attached to the cover
• Bellows type air vent valve is built in to exhaust the air in the piping at the beginning of ventilation, greatly shortening the warm-up
• Energy-saving design without steam loss
• Two types of piping can be selected according to the system (upper left → lower right or upper right → lower right)

仕様

• Specifications: General Industrial (air heater and heat exchanger)
• Type: steam traps
• Format: Float
• Nominal Diameter: Listed after the model number
• Applicable Fluid: steam Drain
• Maximum pressure: 0.88 MPa
• Maximum Operating Temperature: Saturated steam Temperature
• Connection Method: JIS Rc
• Body: Murine Cast Iron
• Valve Body/Valve Seat: SUS
• Float: SUS
•

アズワン品番	64-4027-62
型番	TF-6-32A
標準価格	JPY: 101,000 USD: 633.55 Excange rate 1USD= 159.42JPY Valid price in Japan
入り数	1piece
在庫数
サプライヤ在庫

お見積もり

その他のお問い合わせ

商品のバリエーション （サイズ違い・スペック違い・オプション品など）

商品イメージ	アズワン品番	商品名	型番		入り数	標準価格	標準価格(ドル)	アズワン在庫 [サプライヤ在庫]
	64-4027-60	FC Float Type Steam Trap (Screw-in, General Industrial 0.88 MPa)　TF-6-20A	TF-6-20A		1piece	JPY: 81,600	USD: 511.86
	64-4027-61	FC Float Type Steam Trap (Screw-in, General Industrial 0.88 MPa)　TF-6-25A	TF-6-25A		1piece	JPY: 84,700	USD: 531.30
	64-4027-62	FC Float Type Steam Trap (Screw-in, General Industrial 0.88 MPa)　TF-6-32A	TF-6-32A		1piece	JPY: 101,000	USD: 633.55
	64-4027-63	FC Float Type Steam Trap (Screw-in, General Industrial 0.88 MPa)　TF-6-40A	TF-6-40A		1piece	JPY: 151,000	USD: 947.18
	64-4027-64	FC Float Type Steam Trap (Screw-in, General Industrial 0.88 MPa)　TF-6-50A	TF-6-50A		1piece	JPY: 216,000	USD: 1,354.91
