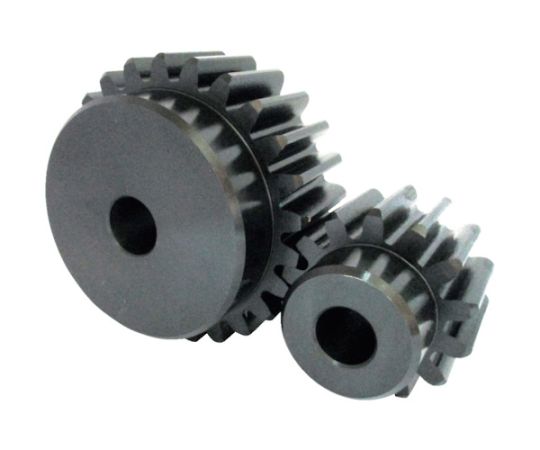

61-2016-25 Pinion gear M: 6.0 x number of teeth: 34 x hole diameter: 30mm M6B34
特徴
- Tooth accuracy: Pidion gear equivalent to ordinary class (old JIS4 class, new JISN8 class).
- For all kinds of machines such as printing machines, automatic packing machines, and electrical component manufacturing lines.
仕様
- Number of teeth: 34
- Base Diameter d (mm): 204
- teeth width b (mm): 60
- hole diameter (mm): 30
- Length l (mm): 83
- module: 6
- Mass (kg): 19
- Carbon Steels for Machine Structural Use
- Surface treatment: Black dyeing
- Application: printing machine, Automatic Baler, Electric parts manufacturing line all machine.
- Production country: China
- Weight: 19kg
- Manufacturer's model number: M6B34
- CODE No.: 333-3680
荷姿サイズ：280×280×100 mm 14 kg [荷姿サイズについて]
| アズワン品番 | 61-2016-25 | |
|---|---|---|
| 型番 | M6B34 | |
| JANコード | 4562120932143 | |
| 標準価格 |
JPY: 33,700
USD: 211.39
Excange rate 1USD= 159.42JPY
Valid price in Japan |
|
| 入り数 | 1piece | |
| 在庫数 |
|
|
| サプライヤ在庫 |
|
|
商品のバリエーション （サイズ違い・スペック違い・オプション品など）
| 商品イメージ | アズワン品番 | 商品名 | 型番 |
Number of teeth |
Reference circle diameter |
入り数 | 標準価格 | 標準価格(ドル) | アズワン在庫 [サプライヤ在庫] |
|
|---|---|---|---|---|---|---|---|---|---|---|
 |
61-2016-06 | Pinion gear M: 6.0 x number of teeth: 12 x hole diameter: 25mm M6B12 | M6B12 | 12 | 72mm | 1piece | JPY: 6,850 | USD: 42.97 |
|
|
 |
61-2016-07 | Pinion gear M: 6.0 x number of teeth: 13 x hole diameter: 25mm M6B13 | M6B13 | 13 | 78mm | 1piece | JPY: 5,720 | USD: 35.88 |
|
|
 |
61-2016-08 | Pinion gear M: 6.0 x number of teeth: 14 x hole diameter: 25mm M6B14 | M6B14 | 14 | 84mm | 1piece | JPY: 8,160 | USD: 51.19 |
|
|
 |
61-2016-09 | Pinion gear M: 6.0 x number of teeth: 15 x hole diameter: 25mm M6B15 | M6B15 | 15 | 90mm | 1piece | JPY: 9,470 | USD: 59.40 |
|
|
 |
61-2016-10 | Pinion gear M: 6.0 x number of teeth: 16 x hole diameter: 25mm M6B16 | M6B16 | 16 | 96mm | 1piece | JPY: 10,800 | USD: 67.75 |
|
|
 |
61-2016-11 | Pinion gear M: 6.0 x number of teeth: 17 x hole diameter: 25mm M6B17 | M6B17 | 17 | 102mm | 1piece | JPY: 11,000 | USD: 69.00 |
|
|
 |
61-2016-12 | Pinion gear M: 6.0 x number of teeth: 18 x hole diameter: 25mm M6B18 | M6B18 | 18 | 108mm | 1piece | JPY: 12,400 | USD: 77.78 |
|
|
 |
61-2016-13 | Pinion gear M: 6.0 x number of teeth: 19 x hole diameter: 25mm M6B19 | M6B19 | 19 | 114mm | 1piece | JPY: 12,700 | USD: 79.66 |
|
|
 |
61-2016-14 | Pinion gear M: 6.0 x number of teeth: 20 x hole diameter: 25mm M6B20 | M6B20 | 20 | 120mm | 1piece | JPY: 14,500 | USD: 90.96 |
|
|
 |
61-2016-15 | Pinion gear M: 6.0 x number of teeth: 21 x hole diameter: 28mm M6B21 | M6B21 | 21 | 126mm | 1piece | JPY: 16,100 | USD: 100.99 |
|
|
 |
61-2016-16 | Pinion gear M: 6.0 x number of teeth: 22 x hole diameter: 28mm M6B22 | M6B22 | 22 | 132mm | 1piece | JPY: 16,500 | USD: 103.50 |
|
|
 |
61-2016-17 | Pinion gear M: 6.0 x number of teeth: 23 x hole diameter: 28mm M6B23 | M6B23 | 23 | 138mm | 1piece | JPY: 18,400 | USD: 115.42 |
|
|
 |
61-2016-18 | Pinion gear M: 6.0 x number of teeth: 24 x hole diameter: 28mm M6B24 | M6B24 | 24 | 144mm | 1piece | JPY: 18,700 | USD: 117.30 |
|
|
 |
61-2016-19 | Pinion gear M: 6.0 x number of teeth: 25 x hole diameter: 28mm M6B25 | M6B25 | 25 | 150mm | 1piece | JPY: 20,600 | USD: 129.22 |
|
|
 |
61-2016-20 | Pinion gear M: 6.0 x number of teeth: 26 x hole diameter: 28mm M6B26 | M6B26 | 26 | 156mm | 1piece | JPY: 22,600 | USD: 141.76 |
|
|
 |
61-2016-21 | Pinion gear M: 6.0 x number of teeth: 27 x hole diameter: 28mm M6B27 | M6B27 | 27 | 162mm | 1piece | JPY: 22,900 | USD: 143.65 |
|
|
 |
61-2016-22 | Pinion gear M: 6.0 x number of teeth: 28 x hole diameter: 28mm M6B28 | M6B28 | 28 | 168mm | 1piece | JPY: 25,500 | USD: 159.96 |
|
|
 |
61-2016-23 | Pinion gear M: 6.0 x number of teeth: 30 x hole diameter: 30mm M6B30 | M6B30 | 30 | 180mm | 1piece | JPY: 28,600 | USD: 179.40 |
|
|
 |
61-2016-24 | Pinion gear M: 6.0 x number of teeth: 32 x hole diameter: 30mm M6B32 | M6B32 | 32 | 192mm | 1piece | JPY: 30,900 | USD: 193.83 |
|
|
 |
61-2016-25 | Pinion gear M: 6.0 x number of teeth: 34 x hole diameter: 30mm M6B34 | M6B34 | 34 | 204mm | 1piece | JPY: 33,700 | USD: 211.39 |
|
|
 |
61-2016-26 | Pinion gear M: 6.0 x number of teeth: 35 x hole diameter: 30mm M6B35 | M6B35 | 35 | 210mm | 1piece | JPY: 36,400 | USD: 228.33 |
|
|
 |
61-2016-27 | Pinion gear M: 6.0 x number of teeth: 36 x hole diameter: 30mm M6B36 | M6B36 | 36 | 216mm | 1piece | JPY: 39,300 | USD: 246.52 |
|
|
 |
61-2016-28 | Pinion gear M: 6.0 x number of teeth: 38 x hole diameter: 30mm M6B38 | M6B38 | 38 | 228mm | 1piece | JPY: 44,100 | USD: 276.63 |
|
|
 |
61-2016-29 | Pinion gear M: 6.0 x number of teeth: 40 x hole diameter: 30mm M6B40 | M6B40 | 40 | 240mm | 1piece | JPY: 48,400 | USD: 303.60 |
|
