Yoshitake Inc.

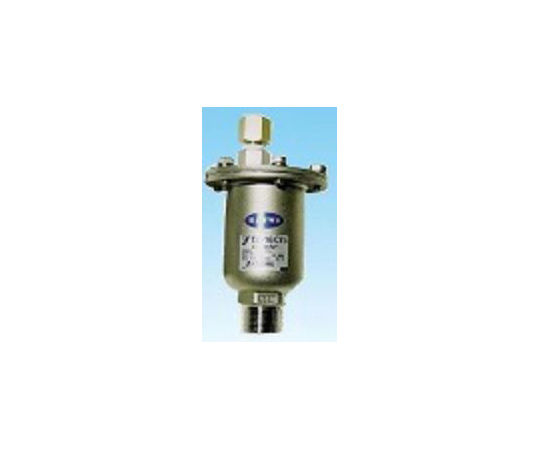

64-4030-67　SUS Air vent valve (Straight with Check Valve , in accordance with the Water Supply Law , conforming products)　TA-16CVS-25A

Features

  • Water Act compliant product
  • Excellent corrosion resistance and durability thanks to the use of stainless steel
  • Stable displacement over wide operating pressure
  • Compact and can be installed in a small space
  • With check valve, does not draw air even when the inlet side is under negative pressure
  • Optional pipe connection parts can be installed

Spec

  • Specifications: SUS Made/With Check Valve
  • Type : Air vent valve
  • Format: Float
  • Nominal Diameter: Listed after the model number
  • Applicable fluids: Cold or hot water
  • Applicable Pressure Range: 0.01 to 1.0 MPa or Less
  • Maximum temperature: 90 deg.
  • Connection Method: JIS R
  • Body: SUS
  • Float: SUS
  • Disk: FKM (Viton)
  •
Order No. 64-4030-67
Model No. TA-16CVS-25A
Standard price JPY: 26,000 USD: 162.98
Excange rate 1USD= 159.53JPY
Valid price in Japan
Quantity 1piece
Stock in Japan
Supplier Stock
