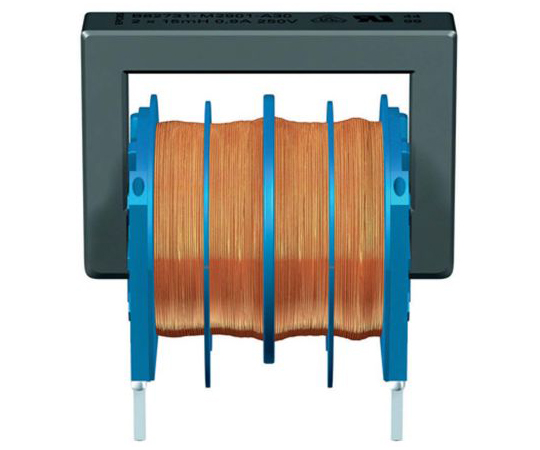

64-1682-21 EPCOS 22 mH -30 → +50% Ferrite Common Mode Choke, Max SRF:10kHz, 800mA Idc, 800mΩ Rdc B82731M B82731M2801A030
Features
- Epcos B82731M Series Common Mode Chokes. B82731M Series Current-compensated D core double chokes, the Vertical version Closed rectangular ferrite core with 2-section winding Closed polycarbonate coil former (UL 94 V-0) without encapsulation with clearance and creepage distances ≥3 mm. High resonance frequency due to 2-section winding Approx. 1% stray inductance for symmetrical interference suppression Low leakage due to closed core shape High pulse strength Low whirring noise Suitable for wave soldering Applications include, Suppression of common-mode interferences; Compact switch-mode power applications and Electronic ballasts in lamps
Spec
- Quantity:1box(800pieces)
- Inductance:22 mH
- Maximum DC Current:800mA
- Mounting Type:Radial
- Maximum DC Resistance:800mΩ
- Tolerance:-30 → +50%
- Length:21mm
- Depth:15mm
- Height:20mm
- Dimensions:21 x 15 x 20mm
- Core Material:Ferrite
- Maximum Self Resonant Frequency:10kHz
- Lead Pitch:12.5mm
- Series:B82731M
- Terminal Type:PC Pin
- CODE No.:167-0392
| Order No. | 64-1682-21 | |
|---|---|---|
| Model No. | B82731M2801A030 | |
| Standard price |
JPY: 296,000
USD: 1,841.71
Excange rate 1USD= 160.72JPY
Valid price in Japan |
|
| Quantity | 1box(800pieces) | |
| Stock in Japan |
|
|
| Supplier Stock |
|
|
