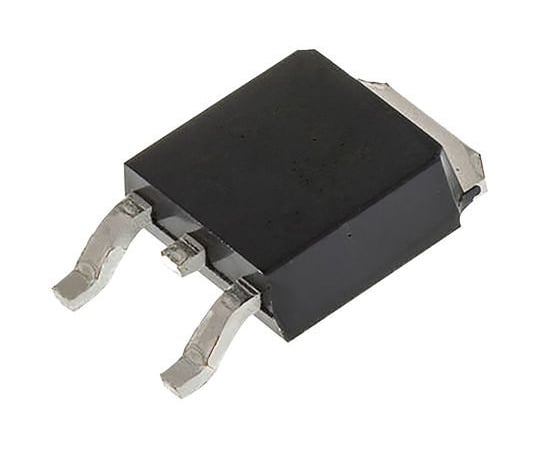

64-1316-63 ［Discontinued］MAC4DCNT4G 4A, 800V, TRIAC, Gate Trigger 1.3V 35mA, 3-pin, Surface Mount, DPAK (TO-252) Littelfuse MAC4DCNT4G
Features
- TRIAC, ON Semiconductor
Spec
- Quantity:1set(2500pieces)
- Rated Average On-State Current:4A
- Mounting Type:Surface Mount
- Package Type:DPAK (TO-252)
- Maximum Gate Trigger Current:35mA
- Repetitive Peak Reverse Voltage:800V
- Surge Current Rating:40A
- Pin Count:3
- Maximum Gate Trigger Voltage:1.3V
- Repetitive Peak Forward Blocking Voltage:800V
- Maximum Holding Current:35mA
- Dimensions:6.73 x 6.22 x 2.38mm
- Length:6.73mm
- Width:6.22mm
- Height:2.38mm
- Minimum Operating Temperature:-40 °C
- CODE No.:177-5221
| Order No. | 64-1316-63 | |
|---|---|---|
| Model No. | MAC4DCNT4G | |
| Standard price |
JPY: 707,000
USD: 4,431.77
Excange rate 1USD= 159.53JPY
Valid price in Japan |
|
| Quantity | 1set(2500pieces) | |
|
||
| Stock in Japan | - | |
