Features

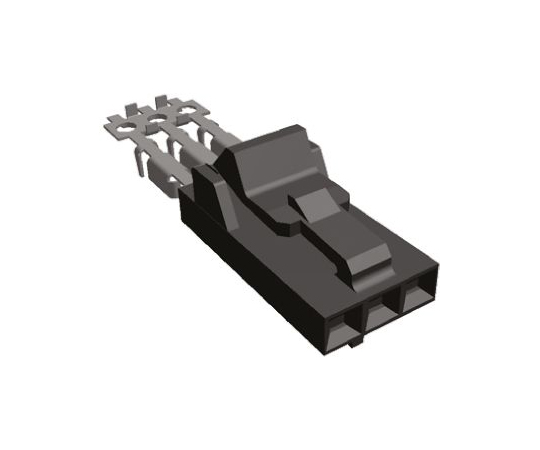

• AMPMODU MTE 2.54mm IDC Strip Form Plain Receptacle Assemblies. AMPMODU MTE IDC plain receptacle assemblies pre-loaded in a 2.54mm centreline format with insulation displacement contacts made from phosphor bronze with 0.00076mm gold duplex plating. These AMPMODU MTE IDC polarized receptacle housings are made from 94V-0 rated black thermoplastic and are supplied in strip form with 8 housings per strip segment. The contacts are furnished on carrier strips which are interlocked for stability and positive location during termination, they are also partially inserted with the termination areas exposed which can then be fully inserted using the appropriate application equipment. These AMPMODU MTE IDC plain receptacle assemblies accept a wire size of 0.12 to 0.3mm ;sup>2 ;/sup> (26-22 AWG)
