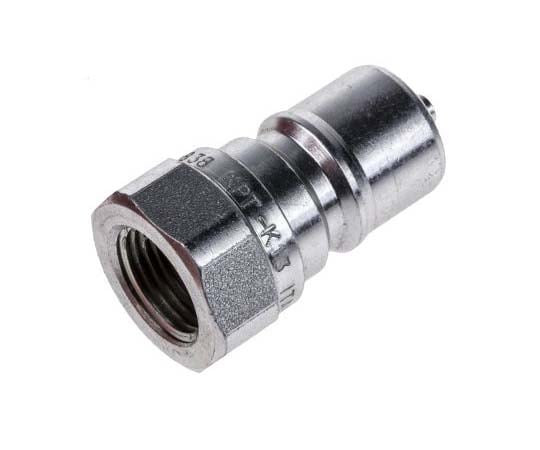

63-7774-58　RS PRO Steel Male Hydraulic Quick Connect Coupling 3/8 in　733-5583

Features

  • ISO 7241-1, 'B'. Do not connect under pressure. ISO B - Steel Male Tip / Female Body Couplers. Resistance to high temperatures (-25 → +125 °C) Suited to general industrial and agricultural applications Nitrile seal material Steel body construction Complies with standard ISO 7241-1, 'B'

Spec

  • Quantity:1piece
  • Series : RS
  • Compatible With : ISO 7241-1-B
  • Type : Union
  • Coupling Gender : Male
  • Locking Style : Ball Lock
  • Thread : Rs 3/8 Male
  • Material : Steel
  • Seal Material : Nitrile Rubber
  • Thread Size : 3/8in
  • Thread Standard : Rs
  • Thread Gender : Male
  • Maximum Operating Pressure : 500 bar
  • Maximum Operating Temperature : +125°C
  • Minimum Operating Temperature : -25°C
  • CODE No.:733-5583
  •
Order No. 63-7774-58
Model No.Model No. class="init"> 63-7774-58 RS PRO Steel Male Hydraulic Quick Connect Coupling 3/8 in　733-5583 【AXEL GLOBAL】<!--@[ss-27]@--> アズワン<!--@/[ss-27]@-->

AS ONE AS ONE

取扱点数300万点
How to use
Cách sử dụng
Contact us
RS PRO

63-7774-58　RS PRO Steel Male Hydraulic Quick Connect Coupling 3/8 in　733-5583

特徴

  • ISO 7241-1, 'B'. Do not connect under pressure. ISO B - Steel Male Tip / Female Body Couplers. Resistance to high temperatures (-25 → +125 °C) Suited to general industrial and agricultural applications Nitrile seal material Steel body construction Complies with standard ISO 7241-1, 'B'

仕様

  • Quantity:1piece
  • Series : RS
  • Compatible With : ISO 7241-1-B
  • Type : Union
  • Coupling Gender : Male
  • Locking Style : Ball Lock
  • Thread : Rs 3/8 Male
  • Material : Steel
  • Seal Material : Nitrile Rubber
  • Thread Size : 3/8in
  • Thread Standard : Rs
  • Thread Gender : Male
  • Maximum Operating Pressure : 500 bar
  • Maximum Operating Temperature : +125°C
  • Minimum Operating Temperature : -25°C
  • CODE No.:733-5583
  •
アズワン品番 63-7774-58
型番 733-5583
標準価格 JPY: 2,140 USD: 13.42
Excange rate 1USD= 159.42JPY
Valid price in Japan
Quantity 1piece
