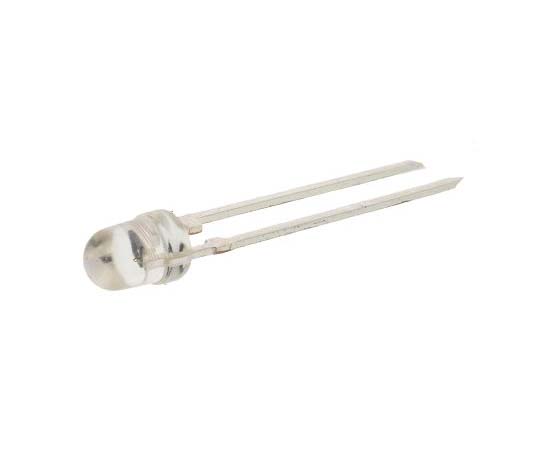

63-7708-13 TEPT4400 Vishay, 60 ° Visible Light Phototransistor, Through Hole 2-Pin 3mm (T-1) package TEPT4400
Features
- TEPT Series Ambient Phototransistors. The TEPT series, from Vishay Semiconductor, are a family of ambient light sensors. They are available in either 3mm (T-1) or 5mm (T-1 3/4) through-hole packages. These NPN epitaxial planar phototransistors have a clear plastic package and are sensitive to visible light, similar to the human eye. Suitable applications for the TEPT series include ambient light sensors or replacement CdS photoresistors.
Spec
- Quantity:1bag(1000pieces)
- Spectrums Detected : Visible Light
- Number of Channels : 1
- Maximum Light Current : 200µA
- Maximum Dark Current : 50nA
- Angle of Half Sensitivity : 60 °
- Number of Pins : 2
- Mounting Type : Through Hole
- Package Type : 3mm (T-1)
- Dimensions : 3.2 x 3.2 x 4.5mm
- Collector Current : 20mA
- Minimum Wavelength Detected : 440nm
- CODE No.:145-1923
| Order No. | 63-7708-13 | |
|---|---|---|
| Model No. | TEPT4400 | |
| Standard price |
JPY: 46,000
USD: 286.21
Excange rate 1USD= 160.72JPY
Valid price in Japan |
|
| Quantity | 1bag(1000pieces) | |
| Stock in Japan |
|
|
| Supplier Stock |
|
|
