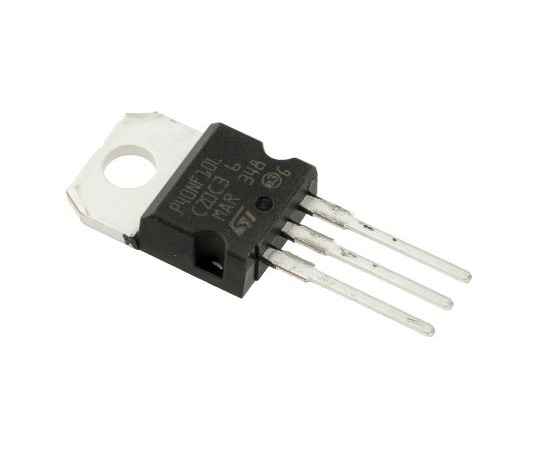

63-4821-21 ［Discontinued］STP40NF10L N-Channel MOSFET, 40 A, 100 V STripFET, 3-Pin TO-220 STMicroelectronics STP40NF10L
Features
- N-Channel STripFET™, STMicroelectronics
Spec
- Quantity：1bag(5pieces)
- Channel Type : N
- Maximum Continuous Drain Current : 40 A
- Maximum Drain Source Voltage : 100 V
- Maximum Drain Source Resistance : 33 mΩ
- Maximum Gate Threshold Voltage : 2.5V
- Minimum Gate Threshold Voltage : 1V
- Maximum Gate Source Voltage : -17 V, +17 V
- Package Type : TO-220
- Mounting Type : Through Hole
- Pin Count : 3
- Channel Mode : Enhancement
- Category : Power MOSFET
- Maximum Power Dissipation : 150 W
- Dimensions : 10.4 x 4.6 x 9.15mm
- CODE No.:486-2290
| Order No. | 63-4821-21 | |
|---|---|---|
| Model No. | STP40NF10L | |
| Standard price |
JPY: 1,270
USD: 7.90
Excange rate 1USD= 160.72JPY
Valid price in Japan |
|
| Quantity | 1bag(5pieces) | |
|
||
| Stock in Japan | - | |
