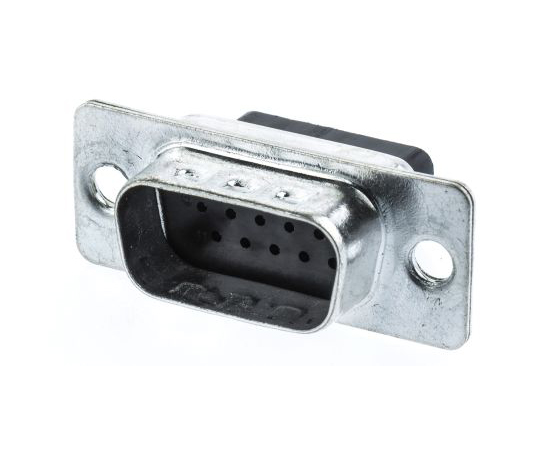

63-4632-43 ［Discontinued］RS PRO 15 Way Cable Mount D-sub Connector Plug, 2.29mm Pitch, with 3.05 mm mounting holes 481-459
Features
- Ratchet Manual Crimp Tool RS part number (< 481-516') 481-516, Insertion Tool RS part number (< 481-522') 481-522 Chassis mounting shells can only be fitted with cable mounting shells of different sexes.
- High-Density D-sub Substrate Mounting Socket, Plug/Socket Housing
Spec
- Number of Contacts:15
- Gender:Male
- Body Orientation:Straight
- Mounting Type:Cable Mount
- Pitch:2.29mm
- Mounting Hardware:3.05 mm mounting holes
- Current Rating:5.0A
- Housing Material:Nylon
- Voltage Rating:350.0 V
- Width:12.2mm
- Depth:12.2mm
- Maximum Operating Temperature:+125°C
- CODE No.:481-459
| Order No. | 63-4632-43 | |
|---|---|---|
| Model No. | 481-459 | |
| Standard price |
JPY: 360
USD: 2.26
Excange rate 1USD= 159.53JPY
Valid price in Japan |
|
| Quantity | 1piece | |
|
||
| Stock in Japan | - | |
