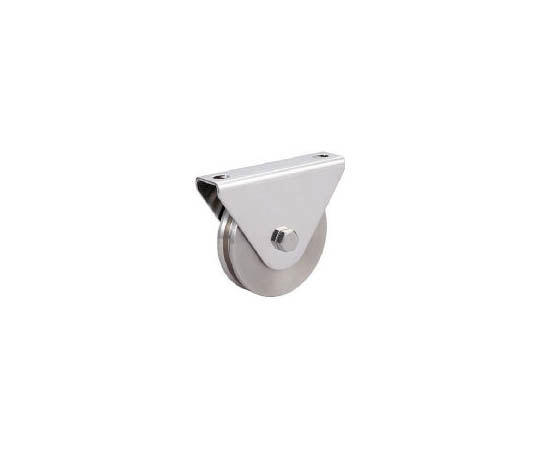

62-3419-64 SUS V-Type with Heavy Duty Door Carriage Frame (200024742) JS300200V
Features
- The bearing uses a rubber seal (airtight and dustproof) and has excellent water resistance.
- Can be used outdoors.
- 2 bearings are used for wheel diameter φ150 or more, allowing even heavy doors to move smoothly.
- Mounting can be either welded or screwed.
- Gate.
Spec
- Quantity: 1 Piece
- Wheel diameter (mm): 200
- Wheel width (mm): 50
- Mounting height H (mm): 215
- Mounting Seat A x B (mm): 290 x 70
- Allowable Load (kgf): 2800/2
- Wheels: V-Type
- Material/Finish: Frame: Stainless Steel (SUS304)/Buff Polished, Wheel: Stainless Steel (SUS303), Bearing: Stainless Steel (SUS440 C)
- Securities Code: 824-6832
Package size：215×290×70 mm 13 kg [About Package size]
| Order No. | 62-3419-64 | |
|---|---|---|
| Model No. | JS300200V | |
| JAN Code | 4510932090612 | |
| Standard price |
JPY: 233,000
USD: 1,612.90
Excange rate 1USD= 144.46JPY
Valid price in Japan |
|
| Quantity | 1piece | |
| Stock in Japan |
|
|
| Supplier Stock |
|
|
