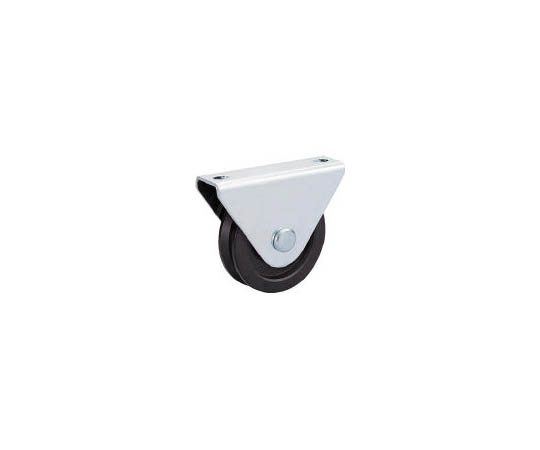

62-3417-91 V-Type with Heavy Duty Door Wheel Frame (200-024-788) JC10090V
Features
- For wheel diameter φ75 or more, rubber seal (airtight dustproof type) is used for the bearing, and it has excellent water resistance.
- Can be used outdoors.
- 2 bearings are used for wheel diameter φ75 or more, allowing even heavy doors to move smoothly.
- Since there is a gap between the frame and the wheel, even if there is some distortion or deviation in the rail, it can absorb the distortion and move smoothly.
- Gate.
Spec
- Quantity: 1 Piece
- Wheel diameter (mm): 90
- Wheel width (mm): 26
- Mounting height H (mm): 95.5
- Mounting Seat A x B (mm): 120 x 37
- Mounting Pitch X (mm): 94
- Wheels: V-Type
- Allowable Load: 2 Wheels: 6860 N (700kgf)
- Material/Finish: Frame: Steel (SPHC)/Glossy Chromate Treatment, Wheels: Dagtile Cast Iron/Baked Paint (Black)
- Securities Code: 820-7507
Package size：100×120×50 mm 1.3 kg [About Package size]
| Order No. | 62-3417-91 | |
|---|---|---|
| Model No. | JC10090V | |
| JAN Code | 4510932091077 | |
| Standard price |
JPY: 7,680
USD: 53.16
Excange rate 1USD= 144.46JPY
Valid price in Japan |
|
| Quantity | 1piece | |
| Stock in Japan |
|
|
| Supplier Stock |
|
|
