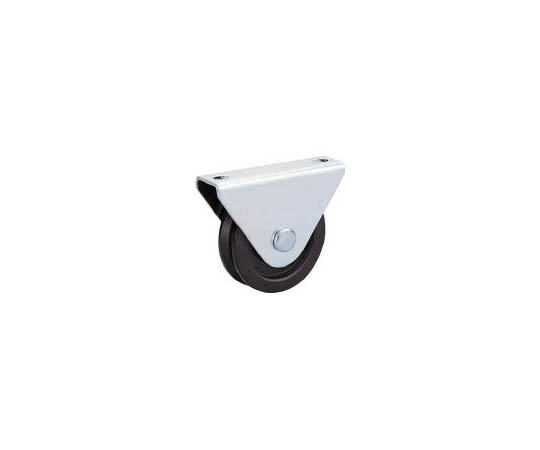

62-3417-85 V-Type with Heavy Duty Door Wheel Frame (200-024-790) JC100120V
-
PrintPrintlass="init">
62-3417-85 V-Type with Heavy Duty Door Wheel Frame (200-024-790) JC100120V 【AXEL GLOBAL】<!--@[ss-27]@--> アズワン<!--@/[ss-27]@--> Contact us
Sugatsune Kogyo Co., Ltd. 62-3417-85 V-Type with Heavy Duty Door Wheel Frame (200-024-790) JC100120V
Features
- For wheel diameter φ75 or more, rubber seal (airtight dustproof type) is used for the bearing, and it has excellent water resistance.
- Can be used outdoors.
- 2 bearings are used for wheel diameter φ75 or more, allowing even heavy doors to move smoothly.
- Since there is a gap between the frame and the wheel, even if there is some distortion or deviation in the rail, it can absorb the distortion and move smoothly.
- Gate.
仕様
- Quantity: 1 Piece
- Wheel diameter (mm): 120
- Wheel width (mm): 28
- Mounting height H (mm): 125.5
- Mounting Seat A x B (mm): 145 x 39.5
- Mounting Pitch X (mm): 115
- Wheels: V-Type
- Allowable Load: 2 Wheels: 9800 N (1000kgf)
- Material/Finish: Frame: Steel (SPHC)/Glossy Chromate Treatment, Wheels: Dagtile Cast Iron/Baked Paint (Black)
- Securities Code: 820-7501
荷姿サイズ：130×150×60 mm 2 kg [About Package size]
Order No. 62-3417-85 Model No. JC100120V JAN Code 4510932091091 Standard price JPY: 13,100 USD: 82.12 Excange rate 1USD= 159.53JPY
Valid price in JapanQuantity 1piece Stock in Japan
Supplier Stock
-
