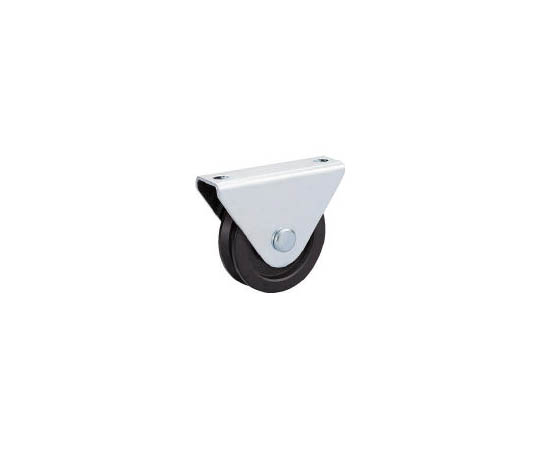

• 62-3417-84 V-Type with Heavy Duty Door Wheel Frame (200-024-789)　JC100100V

Sugatsune Kogyo Co., Ltd.

62-3417-84　V-Type with Heavy Duty Door Wheel Frame (200-024-789)　JC100100V

• 印刷

• PDF

•
•
•

•
•
•

特徴

• For wheel diameter φ75 or more, rubber seal (airtight dustproof type) is used for the bearing, and it has excellent water resistance.
• Can be used outdoors.
• 2 bearings are used for wheel diameter φ75 or more, allowing even heavy doors to move smoothly.
• Since there is a gap between the frame and the wheel, even if there is some distortion or deviation in the rail, it can absorb the distortion and move smoothly.
• Gate.

Spec

• Quantity: 1 Piece
• Wheel diameter (mm): 105
• Wheel width (mm): 28
• Mounting height H (mm): 118
• Mounting Seat A x B (mm): 145 x 39.5
• Mounting Pitch X (mm): 115
• Wheels: V-Type
• Allowable Load: 2 Wheels: 7840 N (800kgf)
• Material/Finish: Frame: Steel (SPHC)/Glossy Chromate Treatment, Wheels: Dagtile Cast Iron/Baked Paint (Black)
• Securities Code: 820-7500
•

Package size：130×150×60 mm　1.7 kg　 [About Package size]

Order No.

62-3417-84
