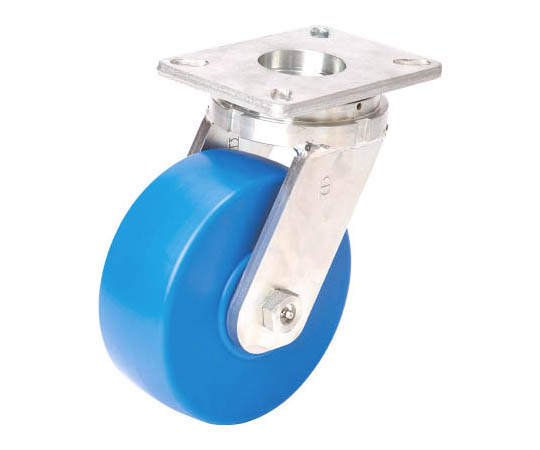

62-3414-56 Super Strong Caster 300 mm HX14MC300
Features
- Strong MC nylon wheels.
- Since the metal fitting turning part S45C is hot forged, and the top plate and king pin are integrally formed, it is strong against high Load and impact. Grease inlet is attached to the rotating metal plate and axle. The turning part uses 5117 thrust bearings and 6206ZZ ball bearings. The metal fitting leg is 12 mm thick with strong welding.
- Carts for transporting heavy materials, undercarriage of large machines, work bench, etc. (working temperature -60° to 150°)
Spec
- Number of Pieces: 1
- Allowable Load (daN): 1960
- Allowable Load (kgf): 2000
- Wheel diameter D (mm): 300
- Wheel width (mm): 76
- Mounting Height H (mm): 392
- Mounting Seat A x B (mm): 184 x 133 x 12
- Mounting Pitch X x Y (mm): 134~155 x 86~105
- Mounting Hole Diameter P (mm): 14
- Allowable Load (daN): 1960
- Material/Finish: Metal Fittings: Steel, Wheel: MC Nylon
- Securities Code: 808 0898
