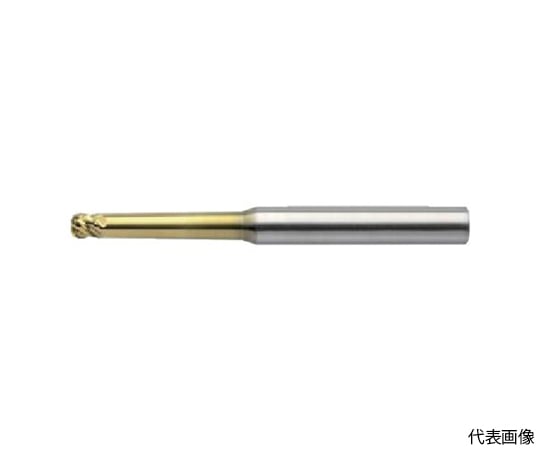

UNION TOOL CO. 62-3413-07 4-Flute Tapered Neck Radius End Mill HTNRS4020-052018
Features
- 4-Flute Taper Neck Radius End Mill for Processing High-Hardness Materials.
- Cutting resistance is reduced by the corner R shape which smoothly connects from the tip to the outer periphery, and chatter vibration is suppressed by the unequal division shape.
- Even in deep carving, stable machining and high quality machined surfaces are realized.
- Uses HARDMAX coat for long life in processing of high hardness materials. Suitable for all coolant.
Spec
- HARDMAX Coat
- 45 Degrees Twist
- Radius Type
- 4 Blades
- Material/Finish: Ultrafine particle cemented carbide (Super MG)
- Note:Shank taper angle is a guide.
- If interference with the work is necessary, make sure to measure and check.
- Be careful of contact between the shank and the work piece.
- To prevent the blade tip from swinging, do not chuck the shank area with the coating around it.
- Country of origin: Japan
- Securities Code: 826 -6512
Package size：13×69×11 mm 30 g [About Package size]
Order No. 62-3413-07 Model No. HTNRS4020-052018 JAN Code 4560295090019 Standard price JPY: 8,938 USD: 56.03 Excange rate 1USD= 159.53JPY
Valid price in JapanQuantity 1piece Stock in Japan
