UNION TOOL CO.

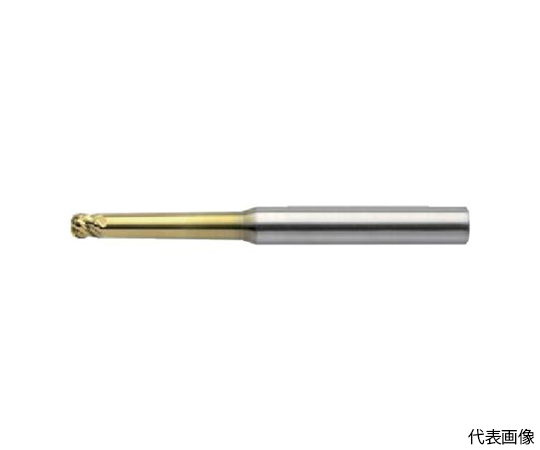

62-3412-98 4-Flute Tapered Neck Radius End Mill HTNRS4015-035018

Features

  • 4-Flute Taper Neck Radius End Mill for Processing High-Hardness Materials.
  • Cutting resistance is reduced by the corner R shape which smoothly connects from the tip to the outer periphery, and chatter vibration is suppressed by the unequal division shape.
  • Even in deep carving, stable machining and high quality machined surfaces are realized.
  • Uses HARDMAX coat for long life in processing of high hardness materials. Suitable for all coolant.

Spec

  • HARDMAX Coat
  • 45 Degrees Twist
  • Radius Type
  • 4 Blades
  • Material/Finish: Ultrafine particle cemented carbide (Super MG)
  • Note:Shank taper angle is a guide.
  • If interference with the work is necessary, make sure to measure and check.
  • Be careful of contact between the shank and the work piece.
  • To prevent the blade tip from swinging, do not chuck the shank area with the coating around it.
  • Country of origin: Japan
  • Securities Code: 826 -6504
  •

Package size:13×103×11 mm 40 g  [About Package size]

Order No. 62-3412-98
Model No. HTNRS4015-035018
JAN Code 4560295092914
Standard price JPY: 12,188 USD: 84.37
Excange rate 1USD= 144.46JPY
Valid price in Japan
Quantity 1piece
Stock in Japan
Supplier Stock
