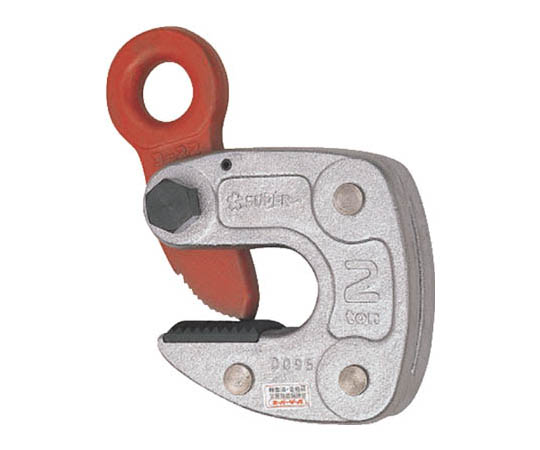

62-3407-96 Steel Shape Clamp (D1:36 mm) HLC3S
Features
- Dedicated hangers for H-shaped, I-shaped, C-shaped, L-shaped and T-shaped steel structures.
- Compact and lightweight for easy handling.
- Can also be used for reversing (causing) steel shapes.
- HLC type is a large diameter shackle type that is easy to handle.
- For lifting structural steel shapes.
- *Never lift in the direction where the center of the cam shaft and the lifting ring hole are aligned.
- *Horizontal suspension of steel plate is not possible even with 2~4 point suspension.
- *Can also be used for reversing shape steel.
Spec
- Quantity: 1 unit
- Basic Working Load: 3.0 t
- Clamp Range: 12~35
- Main Dimensions: H263mm h108mm B184mm D36mm
- For 2-Point Suspension
- Material/Finish: Special Steel
- Securities Code: 813-0576
Package size：115×278×216 mm 8.1 kg [About Package size]
| Order No. | 62-3407-96 | |
|---|---|---|
| Model No. | HLC3S | |
| JAN Code | 4967521015479 | |
| Standard price |
JPY: 50,240
USD: 347.78
Excange rate 1USD= 144.46JPY
Valid price in Japan |
|
| Quantity | 1unit | |
| Stock in Japan |
|
|
| Supplier Stock |
|
|
