Spec

• Clamp & Stopper

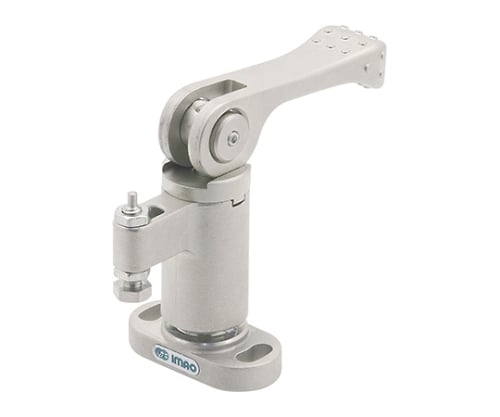

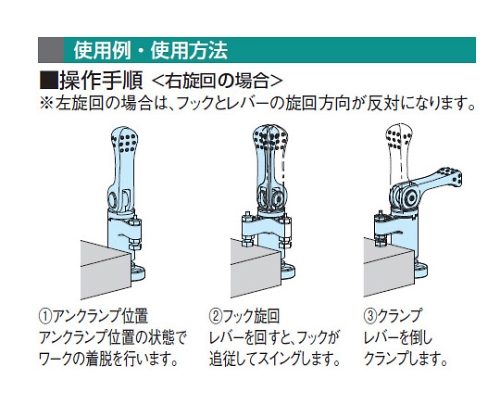

• Swing Clamp (Cam Lever Type)
• Standard stock RoHS electroless nickel Imao WEB product movie released
• Swivel Direction: Right

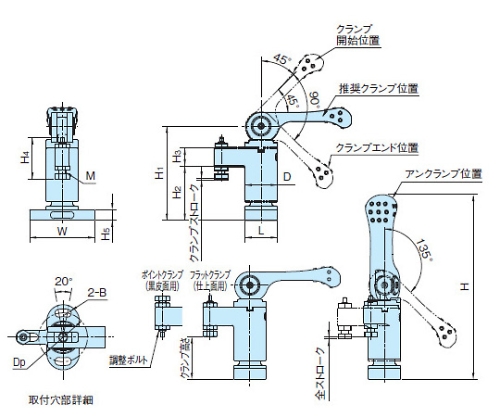

• Clamp height Note 1) [Flat Clamp (For Finishing Surface)] at min: 36.5 (35.7 to 37.2) at max: 46 (45.2 to 46.7)
• Clamp height Note 1) [Point Clamp (For black scale Face)] at min: 39 (38.2 to 39.7) at max: 48 (47.7 to 49.2)
• Clamp Stroke: 1.5
• Total stroke: 2.3

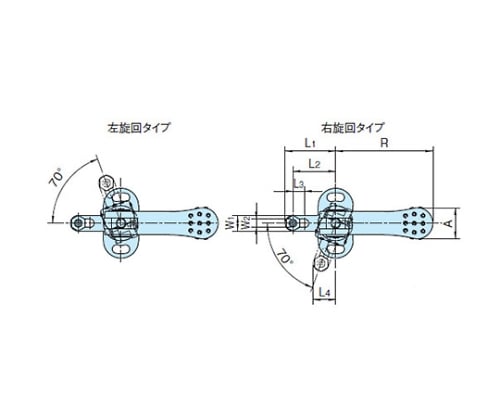

• Dimensions L2 (mm) : 45
• Dimensions L3 (mm): 8
• Dimensions L1 (mm) : 55
• Dimensions L4 (mm) : 25.4
• Dimensions W (mm) : 85
• Dimensions L (mm) : 40
• Dimensions H5 (mm) : 15
• Dimensions B (mm) : 10.5
• Dimensions Dp (mm) : 64
• Dimensions H (mm) : 207
• Dimensions D (mm) : 40
• Dimensions W1 (mm) : 20
• Dimensions W2 (mm) : 10.4
• Dimensions H3 (mm) : 22
• Dimensions H2 (mm) : 60
• Dimensions M (mm) : M10 x 1.5
• Dimensions H4 (mm) : 57
• Dimensions R (mm) : 100
• Dimensions A (mm) : 30
• Dimensions H1 (mm) : 107
• Cam lever part number: QLCA -10

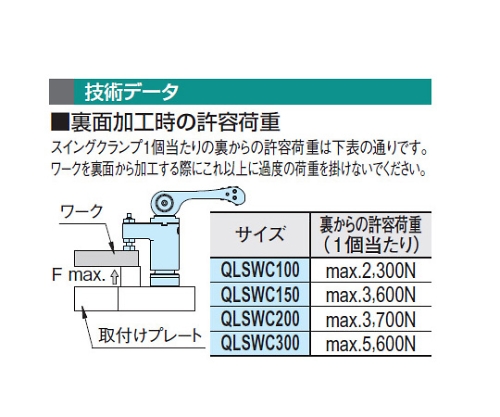

• Lever load (N) Note 2): 300
• Clamping Force (N): 2,800
• Clamp Mechanism: Spiral Cam Angle 4 °
• Mass (g): 1,340
• Manufacturer's Model Number: QLSWC 300 VR-NP
•
