Spec

• Clamp & Stopper
• swing clamp
• Standard stock RoHS electroless nickel Imao WEB product movie released
• Swivel Direction: Left
• Clamp height Note 1) [Flat Clamp (For Finishing Surface)] at min: 32.5 (31.7 to 33.2) at max: 39 (38.2 to 39.7)
• Clamp height Note 1) [Point Clamp (For black scale Face)] at min: 33.5 (32.7 to 34.2) at max: 40 (39.2 to 40.7)
• Clamp Stroke: 1.5
• Rapid stroke: 1.4
• Dimensions L2 (mm) : 37
• Dimensions L3 (mm): 8
• Dimensions L1 (mm) : 45
• Dimensions L4 (mm) : 20.7
• Dimensions W (mm) : 65
• Dimensions L (mm) : 30
• Dimensions H5 (mm) : 12
• Dimensions B (mm) : 8.4
• Dimensions Dp (mm) : 48
• Dimensions H (mm) : 82
• Dimensions D (mm) : 30
• Dimensions W1 (mm) : 16
• Dimensions W2 (mm) : 8.4
• Dimensions H3 (mm) : 18
• Dimensions H2 (mm) : 50
• Dimensions M (mm) : M8 x 1.25
• Dimensions H4 (mm) : 45.5
• Dimensions R (mm) : 80
• Dimensions A (mm) : 26
• Dimensions H1 (mm) : 76.5

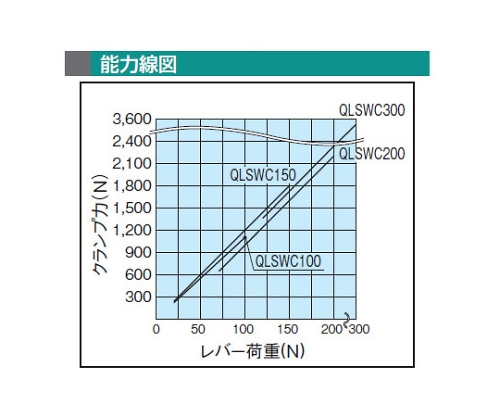

• Lever load (N) Note 2): 200
• Clamping Force (N): 2,200
• Clamp Mechanism: Spiral Cam Angle 4 °
• Mass (g): 570
• Manufacturer's Model Number: QLSWC 200 L-NP
•
