Spec

• Clamp & Stopper

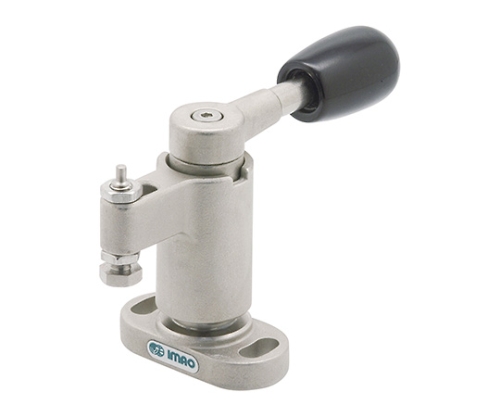

• swing clamp
• Standard stock RoHS electroless nickel Imao WEB product movie released

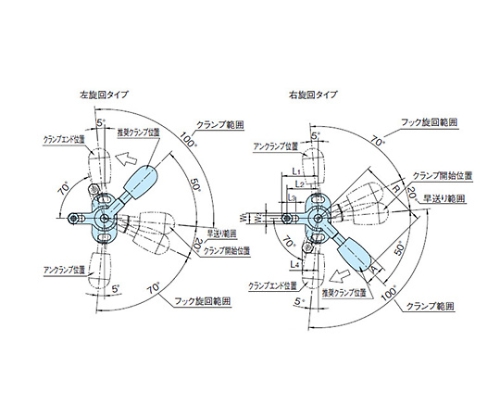

• Swivel Direction: Right
• Clamp height Note 1) [Flat Clamp (For Finishing Surface)] at min 31.3: (30.6 to 32) at max 33.3 (32.6 to 34)
• Clamp height Note 1) [Point Clamp (For black scale Face)] at min: 32.2 (31.5 to 32.9) at max: 34.2 (33.5 to 34.9)
• Clamp Stroke: 1.4
• Rapid stroke: 1.1

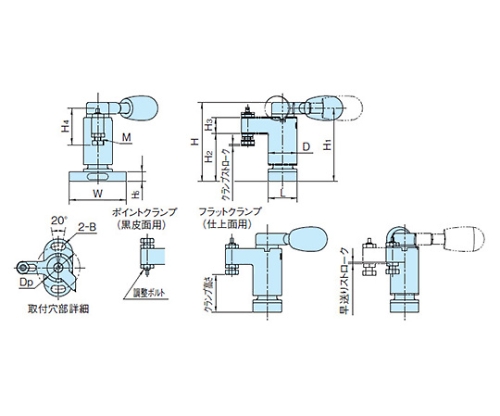

• Dimensions L2 (mm) : 30
• Dimensions L3 (mm): 8
• Dimensions L1 (mm) : 35
• Dimensions L4 (mm) : 15.3
• Dimensions W (mm) : 45
• Dimensions L (mm) : 23
• Dimensions H5 (mm): 8
• Dimensions B (mm) : 5.3
• Dimensions Dp (mm) : 34
• Dimensions H (mm) : 66
• Dimensions D (mm) : 23
• Dimensions W1 (mm) : 10
• Dimensions W2 (mm) : 5.3
• Dimensions H3 (mm) : 14
• Dimensions H2 (mm) : 40
• Dimensions M (mm) : M5 x 0.8
• Dimensions H4 (mm) : 28.5
• Dimensions R (mm) : 63
• Dimensions A (mm) : 20
• Dimensions H1 (mm) : 61.3

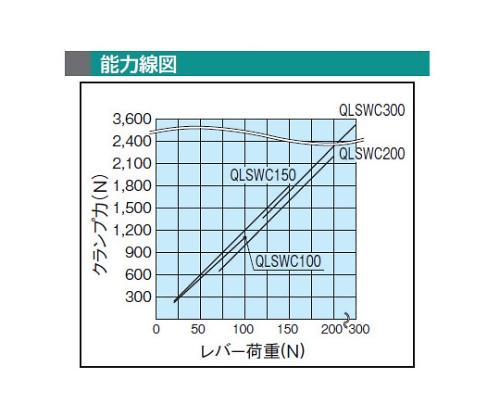

• Lever load (N) Note 2): 150
• Clamping Force (N): 1,800
• Clamp Mechanism: Spiral Cam Angle 5 °
• Mass (g): 250
• Manufacturer's Model Number: QLSWC 150 R-NP
•
