Spec

• Clamp & Stopper
• Swing Clamp (Cam Lever Type)
• Standard stock RoHS electroless nickel Imao WEB product movie released
• Swivel Direction: Left
• Clamp height Note 1) [Flat Clamp (For Finishing Surface)] at min: 22.8 (22.4 to 23.2) at max: 24.8 (24.4 to 25.2)
• Clamp height Note 1) [Point Clamp (For black scale Face)] at min: 22.4 (22 to 22.8) at max: 24.4 (24 to 24.8)
• Clamp Stroke: 0.8
• Total stroke: 1.2
• Dimensions L2 (mm) : 22
• Dimensions L3 (mm): 6
• Dimensions L1 (mm) : 26
• Dimensions L4 (mm) : 11.5
• Dimensions W (mm) : 36
• Dimensions L (mm) : 18
• Dimensions H5 (mm): 6
• Dimensions B (mm) : 4.3
• Dimensions Dp (mm) : 27
• Dimensions H (mm) : 102
• Dimensions D (mm) : 18
• Dimensions W1 (mm): 8
• Dimensions W2 (mm) : 4.3
• Dimensions H3 (mm) : 10
• Dimensions H2 (mm) : 30
• Dimensions M (mm) : M4 x 0.7
• Dimensions H4 (mm) : 22.8
• Dimensions R (mm) : 50
• Dimensions A (mm) : 16
• Dimensions H1 (mm) : 52
• Cam lever part number: QLCA-05
• Lever load (N) Note 2): 100

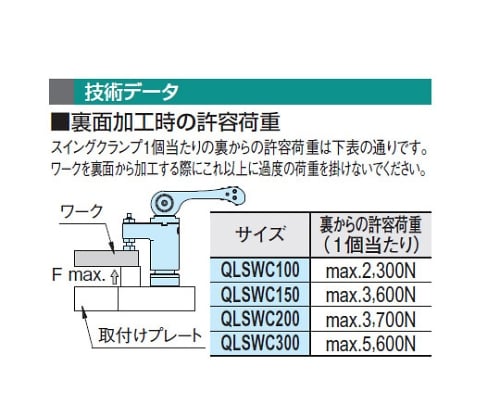

• Clamping Force (N): 800
• Clamp Mechanism: Spiral Cam Angle 4 °
• Mass (g): 134
• Manufacturer's Model Number: QLSWC 100 VL-NP
•
