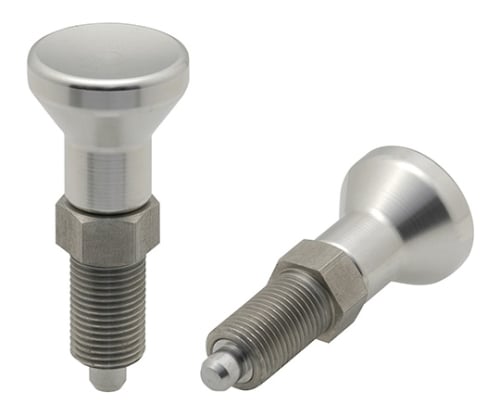

61-4229-84 Index Plunger NDXN12-ASUS
Features
- Made of all stainless steel
- Hand-operated spring plunger that allows you to pull the knob to retract the nose and easily release the position. When you release the hand, the nose returns to its original state by the built-in spring.
- Heat Resistant Temperature 150°C
- Depending on the thickness of the mounting plate, a spacer ring (KSR) can be used.
- Single Nut
- With Hardened Nose
- Body Material: SUS303
- Knob Material: SUS303
- Knob Treatment: Electropolishing
- Coil Spring Material: SUS302WPA
- Nose Material: SUS420 HRC53~55
- Dedicated Nut (Sold Separately): NDX12-NUT/NDX12-NUT-SUS
Spec
- Dimensions d (-0.02 , -0.04) (mm): 6
- Dimensions L1 (mm) : 20
- Dimensions S (mm): 6
- Dimensions A (mm) : 1.8
- Dimensions D (mm) : 25
- Dimensions W1 (mm) : 14
- Dimensions T1 (mm): 8
- Dimensions W (mm) : 19
- Dimensions T (mm): 6
- Dimensions B (mm): 3
- Load Min to Max (N): 6 to 14
- Mass (g): 74
- Allowable shear force (N): 848
- Recommended Chamfer Size: 60 ° Chamfer Depth 3.5
- Manufacturer Model Number: NDXN 12 - ASUS
| Order No. | 61-4229-84 | |
|---|---|---|
| Model No. | NDXN12-ASUS | |
| JAN Code | 4995889665784 | |
| Standard price |
JPY: 4,200
USD: 28.94
Excange rate 1USD= 145.14JPY
Valid price in Japan |
|
| Quantity | 1piece | |
| Stock in Japan |
|
|
| Supplier Stock |
|
|
