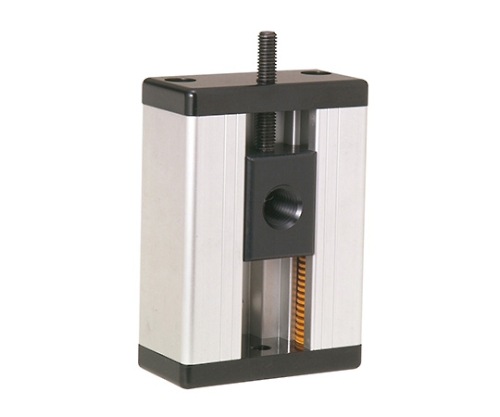

61-4222-61 ［Discontinued］Auto Slide Tightener HAST8-55
Features
- The compression spring automatically adjusts the looseness during operation.
- The stroke is large and the tension is strong.
- You can also change the pressure by replacing the spring.
- It works reliably no matter what direction it is set.
- Tension can be done very easily.
- Body Material: Aluminum Alloy (A6063 S)
- Body Treatment: Alumite Surface Treatment
- Slide Block Material: Ultra High Molecular Weight Polyethylene (UHMWPE)
- Slide Block Color: Black
- Plate Material: Aluminum Alloy (A6063 S)
- Plate Treatment: Black Cation Coating
- Spring Material: SUP10
- Spring Color: Yellow
Spec
- Maximum tension (N): 420

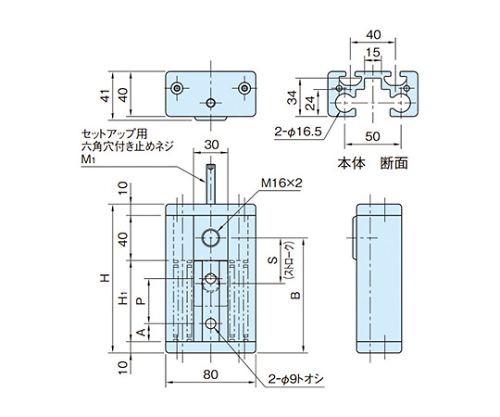

- Dimensions S (mm) : 47
- Dimensions B (mm) : 127
- Dimensions H (mm) : 157
- Dimensions P (mm) : 40
- Dimensions A (mm) : 28.5
- Dimensions H1 (mm) : 97
- Dimensions M1 (mm): M8 x 1.25 -70 L
- Mass (g): 820
- Usable Spring Free Length (mm): 100
- outer diameter (mm) : 16
- inner diameter (mm): 8
- spring constant (N/mm): 4.2
- Manufacturer's Model Number: HAST8 -55
| Order No. | 61-4222-61 | |
|---|---|---|
| Model No. | HAST8-55 | |
| JAN Code | 4995889101718 | |
| Standard price |
JPY: 18,300
USD: 126.09
Excange rate 1USD= 145.14JPY
Valid price in Japan |
|
| Quantity | 1piece | |
|
||
| Stock in Japan | - | |
